Simple shape factory for common 2D-objects. More...

#include <CSimpleShapeFactoryComp.h>

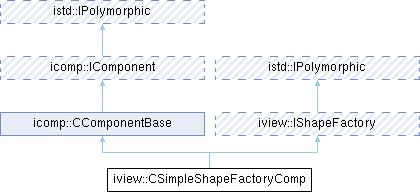

Inheritance diagram for iview::CSimpleShapeFactoryComp:

Public Types
typedef icomp::CComponentBase	BaseClass

Public Member Functions
virtual IShape *	CreateShape (const istd::IChangeable *objectPtr, bool connectToModel=false) const override
	Create a graphical representation of the given 2D-object `object`.

Public Member Functions inherited from icomp::CComponentBase
	CComponentBase ()
	Create component and assign it to specific context.

virtual const icomp::IComponent *	GetParentComponent (bool ownerOnly=false) const override
	Get parent of this component.

virtual void *	GetInterface (const istd::CClassInfo &interfaceType, const QByteArray &subId="") override
	Get access to specified component interface.

virtual IComponentContextSharedPtr	GetComponentContext () const override
	Get access to component context describing all application-specified component information loaded from components registry.

virtual void	SetComponentContext (const IComponentContextSharedPtr &contextPtr, const icomp::IComponent *parentPtr, bool isParentOwner) override
	Set component context of this component.

Public Member Functions inherited from istd::IPolymorphic
virtual	~IPolymorphic ()

Protected Member Functions
virtual CShapeBase *	CreateShapeInstance (const istd::IChangeable &object) const

Protected Member Functions inherited from icomp::CComponentBase
bool	IsComponentActive () const
	Check if component is active.

virtual void	OnComponentCreated ()

virtual void	OnComponentDestroyed ()

virtual const icomp::IRealComponentStaticInfo &	GetComponentStaticInfo () const =0
	Get access to static info of this component.

Additional Inherited Members
Static Protected Member Functions inherited from icomp::CComponentBase
static const icomp::IRealComponentStaticInfo &	InitStaticInfo (IComponent *componentPtr)

static QByteArray	GetComponentId (const icomp::IComponentContext *componentContextPtr, const QByteArray &contextId=QByteArray())

Detailed Description

Simple shape factory for common 2D-objects.

Definition at line 19 of file CSimpleShapeFactoryComp.h.

Member Typedef Documentation

◆ BaseClass

typedef icomp::CComponentBase iview::CSimpleShapeFactoryComp::BaseClass

Definition at line 24 of file CSimpleShapeFactoryComp.h.

Member Function Documentation

◆ CreateShape()

virtual IShape * iview::CSimpleShapeFactoryComp::CreateShape	(	const istd::IChangeable *	objectPtr,
		bool	connectToModel = `false`
	)		const

overridevirtual

Create a graphical representation of the given 2D-object object.

If \connectModel is enabled, the created shape will be connected to the object's data model. If connection has failed, then no shape will be returned. The method returns NULL if the shape could not be created.

Parameters

objectPtr	Object for which the shape will be created. If it is NULL, this will be anonymous. It is declared as `const`, but for attachement to model this `const` will be removed.
connectToModel	If this flag is enabled, the shape will be attached to model of object using observer/observable mechanism.

Implements iview::IShapeFactory.

◆ CreateShapeInstance()

virtual CShapeBase * iview::CSimpleShapeFactoryComp::CreateShapeInstance ( const istd::IChangeable & object ) const

protectedvirtual

The documentation for this class was generated from the following file:

Acf/Include/iview/CSimpleShapeFactoryComp.h
