Progress dialog that displays progress of subtasks. More...

#include <CSubtaskProgressDialog.h>

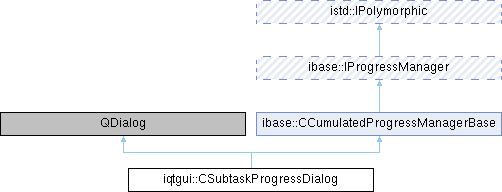

Inheritance diagram for iqtgui::CSubtaskProgressDialog:

Public Types
typedef QDialog	BaseClass

Public Types inherited from ibase::CCumulatedProgressManagerBase
enum class	TaskStatus { Created , Running , Finished }

Signals
void	OverallProgressChanged (int progress)
	Signal emitted when overall progress changes.

void	SubtasksUpdated ()
	Signal emitted when subtask list or progress changes.

Public Member Functions
	CSubtaskProgressDialog (const QString &title, const QString &defaultText, QWidget *parentWidget=nullptr)
	Create a subtask progress dialog.

virtual	~CSubtaskProgressDialog ()

Public Member Functions inherited from ibase::CCumulatedProgressManagerBase
	CCumulatedProgressManagerBase (const TaskInfo &defaultTaskInfo={"", ""})
	Create cumulated progress manager.

virtual	~CCumulatedProgressManagerBase ()

void	SetDefaultTaskInfo (const TaskInfo &defaultTaskInfo)
	Set information of the default task.

double	GetCumulatedProgress () const
	Get final progress beeing result of all task progress.

std::vector< TaskProgressInfo >	GetProcessedTasks (bool preferSorted=false, int maxCount=-1) const
	Get list of current processed tasks.

bool	IsCancelable () const

virtual bool	IsCanceled () const

void	SetCanceled (bool state=true)

virtual void	ResetProgressManager () override
	Reset progress manager and make it possible to reuse it.

std::unique_ptr< IProgressManager >	CreateSubtaskManager (const QByteArray &taskId, const QString &taskDescription, double weight=1.0) override
	Create progress manager for the subtask.

virtual std::unique_ptr< IProgressLogger >	StartProgressLogger (bool isCancelable=false, const QString &description={}) override
	Create progress logger.

Public Member Functions inherited from istd::IPolymorphic
virtual	~IPolymorphic ()

Protected Member Functions
virtual void	OnProgressChanged (double cumulatedValue) override

virtual void	OnTasksChanged () override

Protected Member Functions inherited from ibase::CCumulatedProgressManagerBase
virtual void	OpenTask (TaskBase *taskPtr, const TaskInfo &taskInfo, double weight, bool isCancelable)

virtual void	CloseTask (TaskBase *taskPtr)

virtual void	ReportTaskProgress (TaskBase *taskPtr, double progress, TaskStatus taskStatus)

void	TryUpdateCumulatedProgress ()

Detailed Description

Progress dialog that displays progress of subtasks.

This dialog extends QDialog and implements ibase::CCumulatedProgressManagerBase to show both overall progress and individual subtask progress with status indicators.

Features:

Overall progress bar showing cumulative progress
Dynamic list of subtasks with individual progress bars
Status indicators: completed (checkmark), running (arrow), pending (circle)
Cancel button functionality
Thread-safe signal/slot communication for GUI updates

Usage example:

CSubtaskProgressDialog dialog("Processing Data", "Initializing...", parentWidget);
dialog.show();

// Create subtask managers
auto subtask1 = dialog.CreateSubtaskManager("load", "Loading files", 0.3);
auto subtask2 = dialog.CreateSubtaskManager("process", "Processing images", 0.5);
auto subtask3 = dialog.CreateSubtaskManager("save", "Saving results", 0.2);

// Start logging progress for each subtask
auto logger1 = subtask1->StartProgressLogger(true);
logger1->OnProgress(0.5); // 50% complete
// ...

Definition at line 50 of file CSubtaskProgressDialog.h.

Member Typedef Documentation

◆ BaseClass

typedef QDialog iqtgui::CSubtaskProgressDialog::BaseClass

Definition at line 55 of file CSubtaskProgressDialog.h.

Constructor & Destructor Documentation

◆ CSubtaskProgressDialog()

iqtgui::CSubtaskProgressDialog::CSubtaskProgressDialog	(	const QString &	title,
		const QString &	defaultText,
		QWidget *	parentWidget = `nullptr`
	)

Create a subtask progress dialog.

Parameters

title	Dialog window title
defaultText	Default text shown when no tasks are active
parentWidget	Parent widget (optional)

◆ ~CSubtaskProgressDialog()

virtual iqtgui::CSubtaskProgressDialog::~CSubtaskProgressDialog ( )

virtual

Member Function Documentation

◆ OnProgressChanged()

virtual void iqtgui::CSubtaskProgressDialog::OnProgressChanged ( double cumulatedValue )

overrideprotectedvirtual

Reimplemented from ibase::CCumulatedProgressManagerBase.

◆ OnTasksChanged()

virtual void iqtgui::CSubtaskProgressDialog::OnTasksChanged ( )

overrideprotectedvirtual

Reimplemented from ibase::CCumulatedProgressManagerBase.

◆ OverallProgressChanged

void iqtgui::CSubtaskProgressDialog::OverallProgressChanged ( int progress )

signal

Signal emitted when overall progress changes.

Used for thread-safe GUI updates via queued connection.

◆ SubtasksUpdated

void iqtgui::CSubtaskProgressDialog::SubtasksUpdated ( )

signal

Signal emitted when subtask list or progress changes.
