Progress manager delegating cumulated progress result to another manager. More...

#include <CCumulatedProgressManagerBase.h>

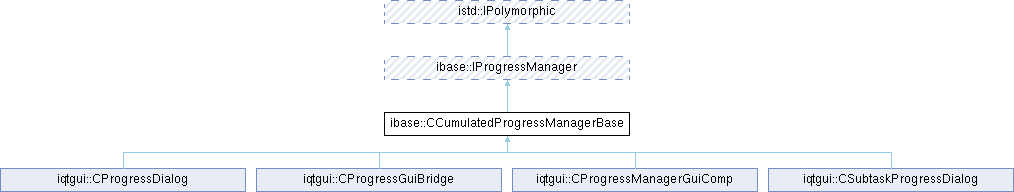

Inheritance diagram for ibase::CCumulatedProgressManagerBase:

Classes
class	TaskBase

struct	TaskInfo

struct	TaskProgressInfo

Public Types
enum class	TaskStatus { Created , Running , Finished }

Public Member Functions
	CCumulatedProgressManagerBase (const TaskInfo &defaultTaskInfo={"", ""})
	Create cumulated progress manager.

virtual	~CCumulatedProgressManagerBase ()

void	SetDefaultTaskInfo (const TaskInfo &defaultTaskInfo)
	Set information of the default task.

double	GetCumulatedProgress () const
	Get final progress beeing result of all task progress.

std::vector< TaskProgressInfo >	GetProcessedTasks (bool preferSorted=false, int maxCount=-1) const
	Get list of current processed tasks.

bool	IsCancelable () const

virtual bool	IsCanceled () const

void	SetCanceled (bool state=true)

virtual void	ResetProgressManager () override
	Reset progress manager and make it possible to reuse it.

std::unique_ptr< IProgressManager >	CreateSubtaskManager (const QByteArray &taskId, const QString &taskDescription, double weight=1.0) override
	Create progress manager for the subtask.

virtual std::unique_ptr< IProgressLogger >	StartProgressLogger (bool isCancelable=false, const QString &description={}) override
	Create progress logger.

Public Member Functions inherited from istd::IPolymorphic
virtual	~IPolymorphic ()

Protected Member Functions
virtual void	OnProgressChanged (double cumulatedValue)

virtual void	OnTasksChanged ()

virtual void	OpenTask (TaskBase *taskPtr, const TaskInfo &taskInfo, double weight, bool isCancelable)

virtual void	CloseTask (TaskBase *taskPtr)

virtual void	ReportTaskProgress (TaskBase *taskPtr, double progress, TaskStatus taskStatus)

void	TryUpdateCumulatedProgress ()

Friends
class	SubTaskManager

Detailed Description

Progress manager delegating cumulated progress result to another manager.

It allows to access cumulated progress and list of tasks beeing curently processed.

Definition at line 24 of file CCumulatedProgressManagerBase.h.

Member Enumeration Documentation

◆ TaskStatus

enum class ibase::CCumulatedProgressManagerBase::TaskStatus

strong

Enumerator

Created

Task was created, but not started.

Running

Task is running.

Progress information is beeing reported.

Finished

Task was finished.

No progress information will be emitted anymore.

Definition at line 27 of file CCumulatedProgressManagerBase.h.

Constructor & Destructor Documentation

◆ CCumulatedProgressManagerBase()

ibase::CCumulatedProgressManagerBase::CCumulatedProgressManagerBase ( const TaskInfo & defaultTaskInfo = {"", ""} )

Create cumulated progress manager.

◆ ~CCumulatedProgressManagerBase()

virtual ibase::CCumulatedProgressManagerBase::~CCumulatedProgressManagerBase ( )

virtual

Member Function Documentation

◆ CloseTask()

virtual void ibase::CCumulatedProgressManagerBase::CloseTask ( TaskBase * taskPtr )

protectedvirtual

◆ CreateSubtaskManager()

std::unique_ptr< IProgressManager > ibase::CCumulatedProgressManagerBase::CreateSubtaskManager	(	const QByteArray &	taskId,
		const QString &	taskDescription,
		double	weight = `1.0`
	)

overridevirtual

Create progress manager for the subtask.

This function should be called up at the start of the task for all subtasks.

Parameters

taskId	unique ID of this task. This ID can be used by the progress bar to distinguish between different tasks.
taskDescription	human readable description of this task.
weight	weight value

Implements ibase::IProgressManager.

◆ GetCumulatedProgress()

double ibase::CCumulatedProgressManagerBase::GetCumulatedProgress ( ) const

Get final progress beeing result of all task progress.

◆ GetProcessedTasks()

std::vector< TaskProgressInfo > ibase::CCumulatedProgressManagerBase::GetProcessedTasks	(	bool	preferSorted = `false`,
		int	maxCount = `-1`
	)		const

Get list of current processed tasks.

Parameters

preferSorted	Flag indicating, that the task list should be sorted from the most important to less important.
maxCount	Maximal number of tasks should be returned.

◆ IsCancelable()

bool ibase::CCumulatedProgressManagerBase::IsCancelable ( ) const

◆ IsCanceled()

virtual bool ibase::CCumulatedProgressManagerBase::IsCanceled ( ) const

virtual

◆ OnProgressChanged()

virtual void ibase::CCumulatedProgressManagerBase::OnProgressChanged ( double cumulatedValue )

protectedvirtual

Reimplemented in iqtgui::CProgressDialog, iqtgui::CProgressGuiBridge, iqtgui::CProgressManagerGuiComp, and iqtgui::CSubtaskProgressDialog.

◆ OnTasksChanged()

virtual void ibase::CCumulatedProgressManagerBase::OnTasksChanged ( )

protectedvirtual

Reimplemented in iqtgui::CProgressDialog, iqtgui::CProgressManagerGuiComp, and iqtgui::CSubtaskProgressDialog.

◆ OpenTask()

virtual void ibase::CCumulatedProgressManagerBase::OpenTask	(	TaskBase *	taskPtr,
		const TaskInfo &	taskInfo,
		double	weight,
		bool	isCancelable
	)

protectedvirtual

◆ ReportTaskProgress()

virtual void ibase::CCumulatedProgressManagerBase::ReportTaskProgress	(	TaskBase *	taskPtr,
		double	progress,
		TaskStatus	taskStatus
	)

protectedvirtual

◆ ResetProgressManager()

virtual void ibase::CCumulatedProgressManagerBase::ResetProgressManager ( )

overridevirtual

Reset progress manager and make it possible to reuse it.

Implements ibase::IProgressManager.

◆ SetCanceled()

void ibase::CCumulatedProgressManagerBase::SetCanceled ( bool state = true )

◆ SetDefaultTaskInfo()

void ibase::CCumulatedProgressManagerBase::SetDefaultTaskInfo ( const TaskInfo & defaultTaskInfo )

Set information of the default task.

◆ StartProgressLogger()

virtual std::unique_ptr< IProgressLogger > ibase::CCumulatedProgressManagerBase::StartProgressLogger	(	bool	isCancelable = `false`,
		const QString &	description = `{}`
	)

overridevirtual

Create progress logger.

This function should be called once at the start of the task if it provides progress information.

Parameters

isCancelable informs, that this task can be cancel during the processing.

Implements ibase::IProgressManager.

◆ TryUpdateCumulatedProgress()

void ibase::CCumulatedProgressManagerBase::TryUpdateCumulatedProgress ( )

protected

Friends And Related Symbol Documentation

◆ SubTaskManager

friend class SubTaskManager

friend

Definition at line 107 of file CCumulatedProgressManagerBase.h.

The documentation for this class was generated from the following file:

Acf/Include/ibase/CCumulatedProgressManagerBase.h
