iqtgui::CDialogGuiComp Class Reference

Dialog based representation of any UI-Component. More...

#include <CDialogGuiComp.h>

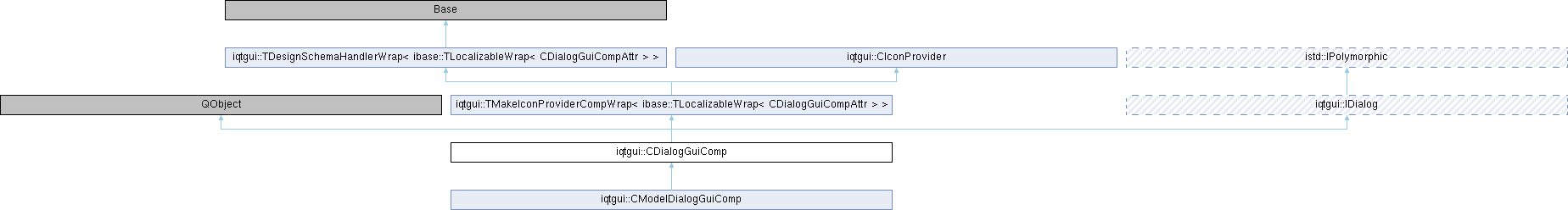

Inheritance diagram for iqtgui::CDialogGuiComp:

Public Types
typedef TMakeIconProviderCompWrap< ibase::TLocalizableWrap< CDialogGuiCompAttr > >	BaseClass
typedef QObject	BaseClass2
Public Types inherited from iqtgui::TMakeIconProviderCompWrap< ibase::TLocalizableWrap< CDialogGuiCompAttr > >
typedef ibase::TLocalizableWrap< CDialogGuiCompAttr >	BaseClass
Public Types inherited from iqtgui::TDesignSchemaHandlerWrap< Base >
typedef Base	BaseClass

Public Member Functions
	CDialogGuiComp ()
virtual int	ExecuteDialog (IGuiObject *parentPtr) override
	Execute dialog instance.
Public Member Functions inherited from iqtgui::TDesignSchemaHandlerWrap< Base >
	TDesignSchemaHandlerWrap ()
virtual void	EnableDesignHandler (bool enable=true)
	If enabled, listen to the design schema change events from the application context.
Public Member Functions inherited from iqtgui::CIconProvider
virtual QIcon	GetIcon (const QString &iconName) const
virtual QString	GetIconPath (const QString &iconName) const
virtual QString	GetStyleSheetPath (const QString &styleSheetPath) const
QByteArray	GetCurrentThemeId () const
void	SetThemeId (const QByteArray &themeId)
Public Member Functions inherited from istd::IPolymorphic
virtual	~IPolymorphic ()

Protected Slots
void	OnCommandActivated ()

Protected Member Functions
virtual iqtgui::CGuiComponentDialog *	CreateComponentDialog (int buttons, IGuiObject *parentPtr) const
void	UpdateVisuals ()
virtual void	OnLanguageChanged () override
virtual void	OnDesignSchemaChanged (const QByteArray &themeId) override
virtual void	OnComponentCreated () override
virtual bool	eventFilter (QObject *sourcePtr, QEvent *eventPtr) override
Protected Member Functions inherited from iqtgui::CIconProvider
virtual QIcon	CreateIcon (const QString &iconName) const

Detailed Description

Dialog based representation of any UI-Component.

This component provides also a menu command and can be integrated into a consumer of ibase::ICommandsProvider interface.

Definition at line 41 of file CDialogGuiComp.h.

Member Typedef Documentation

BaseClass

typedef TMakeIconProviderCompWrap<ibase::TLocalizableWrap<CDialogGuiCompAttr> > iqtgui::CDialogGuiComp::BaseClass

Definition at line 49 of file CDialogGuiComp.h.

BaseClass2

typedef QObject iqtgui::CDialogGuiComp::BaseClass2

Definition at line 50 of file CDialogGuiComp.h.

Constructor & Destructor Documentation

CDialogGuiComp()

iqtgui::CDialogGuiComp::CDialogGuiComp

(

)

Member Function Documentation

CreateComponentDialog()

virtual iqtgui::CGuiComponentDialog * iqtgui::CDialogGuiComp::CreateComponentDialog ( int  buttons, IGuiObject *  parentPtr  ) const

protectedvirtual

eventFilter()

virtual bool iqtgui::CDialogGuiComp::eventFilter ( QObject *  sourcePtr, QEvent *  eventPtr  )

overrideprotectedvirtual

ExecuteDialog()

virtual int iqtgui::CDialogGuiComp::ExecuteDialog ( IGuiObject *  parentPtr )

overridevirtual

Execute dialog instance.

Returns

Status of the dialog execution.

See also

QDialog

Implements iqtgui::IDialog.

Reimplemented in iqtgui::CModelDialogGuiComp.

OnCommandActivated

void iqtgui::CDialogGuiComp::OnCommandActivated ( )

protectedslot

OnComponentCreated()

virtual void iqtgui::CDialogGuiComp::OnComponentCreated ( )

overrideprotectedvirtual

OnDesignSchemaChanged()

virtual void iqtgui::CDialogGuiComp::OnDesignSchemaChanged ( const QByteArray &  themeId )

overrideprotectedvirtual

Reimplemented from iqtgui::TMakeIconProviderCompWrap< ibase::TLocalizableWrap< CDialogGuiCompAttr > >.

OnLanguageChanged()

virtual void iqtgui::CDialogGuiComp::OnLanguageChanged ( )

overrideprotectedvirtual

UpdateVisuals()

void iqtgui::CDialogGuiComp::UpdateVisuals ( )

protected

---

The documentation for this class was generated from the following file:

• Acf/Include/iqtgui/CDialogGuiComp.h
