Implementation of 1D sampled function with uniform sampling grid. More...

#include <CSampledFunction.h>

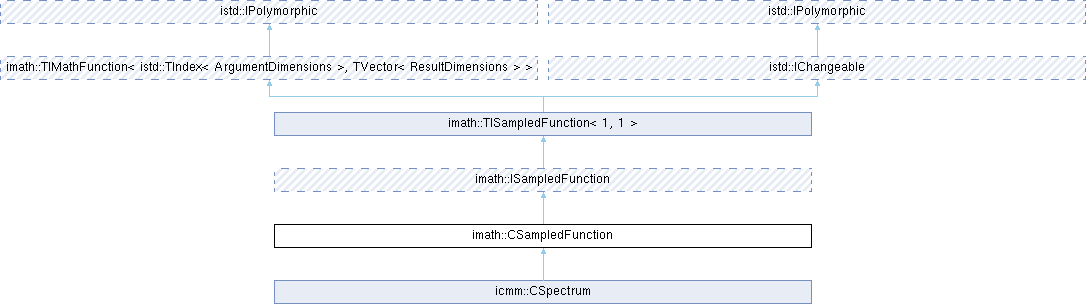

Inheritance diagram for imath::CSampledFunction:

Public Types
typedef istd::TIndex< 1 >	Index

Public Types inherited from imath::TISampledFunction< 1, 1 >
typedef imath::TIMathFunction< istd::TIndex< ArgumentDimensions >, imath::TVector< ResultDimensions > >	BaseClass

typedef BaseClass::ArgumentType	ArgumentType

typedef BaseClass::ResultType	ResultType

typedef istd::TIndex< ArgumentDimensions >	SampleIndex

Public Types inherited from imath::TIMathFunction< istd::TIndex< ArgumentDimensions >, TVector< ResultDimensions > >
typedef istd::TIndex< ArgumentDimensions >	ArgumentType

typedef TVector< ResultDimensions >	ResultType

Public Types inherited from istd::IChangeable
enum	ChangeFlags { CF_ACF_INTERNAL = 0 , CF_ALL_DATA , CF_ANY , CF_DESTROYING , CF_DELEGATED , CF_NO_UNDO }
	Data model change notification flags. More...

enum	SupportedOperations { SO_NONE = 0 , SO_OBSERVE = 1 << 0 , SO_COPY = 1 << 1 , SO_CLONE = 1 << 2 , SO_COMPARE = 1 << 3 , SO_RESET = 1 << 4 }
	Flags for supported operations. More...

enum	CompatibilityMode { CM_STRICT , CM_WITHOUT_REFS , CM_WITH_REFS , CM_CONVERT }
	Control how relationship betweeen objects are interpreted. More...

typedef QMultiMap< QByteArray, QVariant >	ChangeInfoMap

Public Member Functions
	CSampledFunction ()

	CSampledFunction (const CSampledFunction &function)

	CSampledFunction (const imath::ISampledFunction &function)

	CSampledFunction (int size, double defaultValue=0)

bool	operator== (const CSampledFunction &other) const

void	Reset ()

bool	Initialize (int size, double defaultValue=0)

double	GetSampleValue (int index) const

void	SetSampleValue (int index, double value)

void	SetLogicalRange (const istd::CRange &logicalRange)

double	GetSamplingStep () const

double	GetSampleCoordinate (int index) const

virtual bool	CreateFunction (double *dataPtr, const ArgumentType &sizes) override
	Create function from input data.

virtual int	GetTotalSamplesCount () const override
	Get number of samples stored in this container.

virtual double	GetSampleAt (const SampleIndex &index) const override
	Get sample value at the given index.

virtual int	GetGridSize (int dimensionIndex) const override
	Get number of samples for specified dimension.

virtual istd::CRange	GetLogicalRange (int dimensionIndex) const override
	Get logical range for the specified dimension.

virtual istd::CRange	GetResultValueRange (int dimensionIndex, int resultDimension=-1) const override
	Get the range (boundary) of possible result values for the given axis.

virtual std::vector< double >	GetSamples () const override
	Get all samples as a vector.

virtual bool	GetValueAt (const ArgumentType &argument, ResultType &result) const override

virtual ResultType	GetValueAt (const ArgumentType &argument) const override

virtual int	GetSupportedOperations () const override
	Get set of flags for supported operations.

virtual bool	CopyFrom (const IChangeable &object, CompatibilityMode mode=CM_WITHOUT_REFS) override

virtual bool	IsEqual (const IChangeable &object) const override

virtual istd::IChangeableUniquePtr	CloneMe (CompatibilityMode mode=CM_WITHOUT_REFS) const override
	Make a copy of this object.

virtual bool	ResetData (CompatibilityMode mode=CM_WITHOUT_REFS) override
	Reset data to its default state.

Public Member Functions inherited from imath::ISampledFunction
double	operator[] (int index) const

Public Member Functions inherited from imath::TISampledFunction< 1, 1 >
virtual int	GetArgumentDimensionality () const
	Get the number of argument components.

virtual int	GetResultDimensionality () const
	Get the number of result components.

Public Member Functions inherited from imath::TIMathFunction< istd::TIndex< ArgumentDimensions >, TVector< ResultDimensions > >
virtual bool	GetValueAt (const istd::TIndex< ArgumentDimensions > &argument, TVector< ResultDimensions > &result) const=0
	Get function value for specified argument value.

virtual TVector< ResultDimensions >	GetValueAt (const istd::TIndex< ArgumentDimensions > &argument) const=0
	Get function value for specified argument value.

Public Member Functions inherited from istd::IPolymorphic
virtual	~IPolymorphic ()

Public Member Functions inherited from istd::IChangeable
virtual bool	CopyFrom (const IChangeable &object, CompatibilityMode mode=CM_WITHOUT_REFS)
	Copy this object from another one.

virtual bool	IsEqual (const IChangeable &object) const
	Compare this object with another object.

virtual void	BeginChanges (const ChangeSet &changeSet)
	Starts the change transaction.

virtual void	EndChanges (const ChangeSet &changeSet)
	Ends the change transaction.

virtual void	BeginChangeGroup (const ChangeSet &changeSet)
	Starts group of changes.

virtual void	EndChangeGroup (const ChangeSet &changeSet)
	Ends group of changes.

Additional Inherited Members
Static Public Member Functions inherited from istd::IChangeable
static const ChangeSet &	GetNoChanges ()
	Get empty set of changes.

static const ChangeSet &	GetAnyChange ()
	Get anonymous change set.

static const ChangeSet &	GetAllChanges ()
	Get anonymous change set.

static const ChangeSet &	GetDelegatedChanges ()
	Get delegated change set.

Protected Member Functions inherited from istd::IChangeable
virtual void	OnBeginChanges ()
	Callback function for begin change event.

virtual void	OnEndChanges (const ChangeSet &changeSet)
	Callback function for end change event.

Detailed Description

Implementation of 1D sampled function with uniform sampling grid.

Purpose

CSampledFunction represents a one-dimensional function sampled at regular intervals over a logical domain. It stores function values at discrete sample points and provides interpolation for continuous evaluation. This class is fundamental for representing digitized signals, sensor data, lookup tables, and discretized mathematical functions.

Key Concepts

Logical Range: The continuous domain [min, max] over which the function is defined
Samples: Discrete function values stored at regular intervals
Sampling Step: Distance between consecutive sample points (computed automatically)
Sample Coordinate: The logical domain position of a given sample index
Interpolation: Evaluating function at arbitrary points (typically linear)

Usage Examples

// Create function with 100 samples
imath::CSampledFunction func(100, 0.0);

// Set logical range [0, 10]
func.SetLogicalRange(istd::CRange(0.0, 10.0));

// Fill with sine wave data
for (int i = 0; i < 100; ++i) {
       double x = func.GetSampleCoordinate(i);  // Get position in [0, 10]
       func.SetSampleValue(i, qSin(x));
}

// Evaluate at arbitrary point (with interpolation)
double result;
if (func.GetValueAt(3.7, result)) {
       // result contains interpolated value at x=3.7
}

// Get sampling information
double step = func.GetSamplingStep();  // 10.0 / 99 ~ 0.101
int count = func.GetTotalSamplesCount();  // 100

// Copy from another sampled function
imath::CSampledFunction func2;
func2.CopyFrom(func);

// Access raw samples
std::vector<double> samples = func.GetSamples();

Sampled Function vs Interpolator

CSampledFunction: Stores and owns the sample data, uniform grid, IChangeable
Interpolators (CLinearInterpolator, CAkimaInterpolator): Reference external data, provide interpolation algorithms, don't store data

Use CSampledFunction when:

You need to store and manage sampled data
Working with uniform sampling grids
Need IChangeable interface (undo/redo, serialization)
Building signal processing or data analysis systems

Implemented Interfaces

ISampledFunction: Core sampled function interface
TIMathFunction: Mathematical function evaluation
IChangeable: Change tracking, cloning, serialization

See also: imath::ISampledFunction, imath::CSampledFunction2d, imath::CLinearInterpolator, imath::CAkimaInterpolator

Definition at line 84 of file CSampledFunction.h.

Member Typedef Documentation

◆ Index

typedef istd::TIndex<1> imath::CSampledFunction::Index

Definition at line 87 of file CSampledFunction.h.

Constructor & Destructor Documentation

◆ CSampledFunction() [1/4]

imath::CSampledFunction::CSampledFunction ( )

◆ CSampledFunction() [2/4]

imath::CSampledFunction::CSampledFunction ( const CSampledFunction & function )

◆ CSampledFunction() [3/4]

imath::CSampledFunction::CSampledFunction ( const imath::ISampledFunction & function )

explicit

◆ CSampledFunction() [4/4]

imath::CSampledFunction::CSampledFunction	(	int	size,
		double	defaultValue = `0`
	)

explicit

Member Function Documentation

◆ CloneMe()

virtual istd::IChangeableUniquePtr imath::CSampledFunction::CloneMe ( CompatibilityMode mode = CM_WITHOUT_REFS ) const

overridevirtual

Make a copy of this object.

Returns: new instance or NULL, if this operation is not supported.

Reimplemented from istd::IChangeable.

Reimplemented in icmm::CSpectrum.

◆ CopyFrom()

virtual bool imath::CSampledFunction::CopyFrom	(	const IChangeable &	object,
		CompatibilityMode	mode = `CM_WITHOUT_REFS`
	)

overridevirtual

Reimplemented in icmm::CSpectrum.

◆ CreateFunction()

virtual bool imath::CSampledFunction::CreateFunction	(	double *	dataPtr,
		const ArgumentType &	sizes
	)

overridevirtual

Create function from input data.

Implements imath::TISampledFunction< 1, 1 >.

◆ GetGridSize()

virtual int imath::CSampledFunction::GetGridSize ( int dimensionIndex ) const

overridevirtual

Get number of samples for specified dimension.

Implements imath::TISampledFunction< 1, 1 >.

◆ GetLogicalRange()

virtual istd::CRange imath::CSampledFunction::GetLogicalRange ( int dimensionIndex ) const

overridevirtual

Get logical range for the specified dimension.

Logical range defines boundaries of the function domain in the given dimension.

Implements imath::TISampledFunction< 1, 1 >.

◆ GetResultValueRange()

virtual istd::CRange imath::CSampledFunction::GetResultValueRange	(	int	dimensionIndex,
		int	resultDimension = `-1`
	)		const

overridevirtual

Get the range (boundary) of possible result values for the given axis.

Optionally some result dimension can be also specified.

Parameters

dimensionIndex	index of argument dimension.
resultDimension	optional index of result dimension, it can be negative if all dimensions are meaned.

Returns: range of possible values, or invalid range if it is unknown.

Implements imath::TISampledFunction< 1, 1 >.

◆ GetSampleAt()

virtual double imath::CSampledFunction::GetSampleAt ( const SampleIndex & index ) const

overridevirtual

Get sample value at the given index.

Implements imath::TISampledFunction< 1, 1 >.

◆ GetSampleCoordinate()

double imath::CSampledFunction::GetSampleCoordinate ( int index ) const

inline

Definition at line 165 of file CSampledFunction.h.

References istd::TRange< ValueType >::GetValueFromAlpha().

◆ GetSamples()

virtual std::vector< double > imath::CSampledFunction::GetSamples ( ) const

overridevirtual

Get all samples as a vector.

Returns: vector containing all sample values

Implements imath::TISampledFunction< 1, 1 >.

◆ GetSampleValue()

double imath::CSampledFunction::GetSampleValue ( int index ) const

inline

Definition at line 133 of file CSampledFunction.h.

◆ GetSamplingStep()

double imath::CSampledFunction::GetSamplingStep ( ) const

inline

Definition at line 155 of file CSampledFunction.h.

References istd::TRange< ValueType >::GetLength().

◆ GetSupportedOperations()

virtual int imath::CSampledFunction::GetSupportedOperations ( ) const

overridevirtual

Get set of flags for supported operations.

See also: SupportedOperations

Reimplemented from istd::IChangeable.

Reimplemented in icmm::CSpectrum.

◆ GetTotalSamplesCount()

virtual int imath::CSampledFunction::GetTotalSamplesCount ( ) const

overridevirtual

Get number of samples stored in this container.

Implements imath::TISampledFunction< 1, 1 >.

◆ GetValueAt() [1/2]

virtual ResultType imath::CSampledFunction::GetValueAt ( const ArgumentType & argument ) const

overridevirtual

◆ GetValueAt() [2/2]

virtual bool imath::CSampledFunction::GetValueAt	(	const ArgumentType &	argument,
		ResultType &	result
	)		const

overridevirtual

◆ Initialize()

bool imath::CSampledFunction::Initialize	(	int	size,
		double	defaultValue = `0`
	)

◆ IsEqual()

virtual bool imath::CSampledFunction::IsEqual ( const IChangeable & object ) const

overridevirtual

Reimplemented in icmm::CSpectrum.

◆ operator==()

bool imath::CSampledFunction::operator== ( const CSampledFunction & other ) const

◆ Reset()

void imath::CSampledFunction::Reset ( )

◆ ResetData()

virtual bool imath::CSampledFunction::ResetData ( CompatibilityMode mode = CM_WITHOUT_REFS )

overridevirtual

Reset data to its default state.

Default implementation in istd::IChangeable does nothing.

Returns: true if the operation was successful, and false otherwise.

Reimplemented from istd::IChangeable.

Reimplemented in icmm::CSpectrum.

◆ SetLogicalRange()

void imath::CSampledFunction::SetLogicalRange ( const istd::CRange & logicalRange )

inline

Definition at line 149 of file CSampledFunction.h.

◆ SetSampleValue()

void imath::CSampledFunction::SetSampleValue	(	int	index,
		double	value
	)

inline

Definition at line 141 of file CSampledFunction.h.

The documentation for this class was generated from the following file:

Acf/Include/imath/CSampledFunction.h

Public Types

Public Member Functions

Additional Inherited Members

Detailed Description

Purpose

Key Concepts

Usage Examples

Sampled Function vs Interpolator

Implemented Interfaces

Member Typedef Documentation

◆ Index

Constructor & Destructor Documentation

◆ CSampledFunction() [1/4]

◆ CSampledFunction() [2/4]

◆ CSampledFunction() [3/4]

◆ CSampledFunction() [4/4]

Member Function Documentation

◆ CloneMe()

◆ CopyFrom()

◆ CreateFunction()

◆ GetGridSize()

◆ GetLogicalRange()

◆ GetResultValueRange()

◆ GetSampleAt()

◆ GetSampleCoordinate()

◆ GetSamples()

◆ GetSampleValue()

◆ GetSamplingStep()

◆ GetSupportedOperations()

◆ GetTotalSamplesCount()

◆ GetValueAt() [1/2]

◆ GetValueAt() [2/2]

◆ Initialize()

◆ IsEqual()

◆ operator==()

◆ Reset()

◆ ResetData()

◆ SetLogicalRange()

◆ SetSampleValue()
