icomp::TSubelementStaticInfo< ComponentType > Class Template Reference

#include <TSubelementStaticInfo.h>

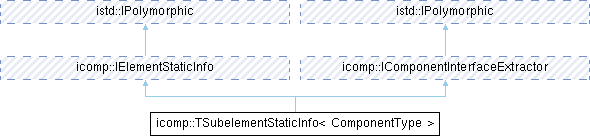

Inheritance diagram for icomp::TSubelementStaticInfo< ComponentType >:

Public Types
typedef void *(*	InterfaceExtractorPtr) (ComponentType &component)
Public Types inherited from icomp::IElementStaticInfo
enum	MetaGroupId { MGI_INTERFACES = 0 , MGI_SUBELEMENTS , MGI_LAST = MGI_SUBELEMENTS }
typedef QSet< QByteArray >	Ids

Public Member Functions
	TSubelementStaticInfo (const QByteArray &name, CBaseComponentStaticInfo &owner)
	Constructor attaching this subelement info to the component.
virtual void	RegisterInterfaceExtractor (const QByteArray &interfaceName, InterfaceExtractorPtr extractorPtr)
	Register interface ID for this static component info.
virtual Ids	GetMetaIds (int metaGroupId) const override
	Get list of meta IDs associated with some meta key.
virtual const IElementStaticInfo *	GetSubelementInfo (const QByteArray &subcomponentId) const override
	Return number of interfaces for specific slot.
virtual void *	GetComponentInterface (const istd::CClassInfo &interfaceType, IComponent &component, const QByteArray &subId) const override
	Extract instance implemented specified interface from some component.
Public Member Functions inherited from istd::IPolymorphic
virtual	~IPolymorphic ()

Detailed Description

template<class ComponentType>
class icomp::TSubelementStaticInfo< ComponentType >

Definition at line 19 of file TSubelementStaticInfo.h.

Member Typedef Documentation

InterfaceExtractorPtr

template<class ComponentType >

typedef void *(* icomp::TSubelementStaticInfo< ComponentType >::InterfaceExtractorPtr) (ComponentType &component)

Definition at line 24 of file TSubelementStaticInfo.h.

Constructor & Destructor Documentation

TSubelementStaticInfo()

template<class ComponentType >

icomp::TSubelementStaticInfo< ComponentType >::TSubelementStaticInfo	(	const QByteArray &	name,
		CBaseComponentStaticInfo &	owner
	)

Constructor attaching this subelement info to the component.

Definition at line 73 of file TSubelementStaticInfo.h.

References icomp::CBaseComponentStaticInfo::RegisterSubelementInfo().

Member Function Documentation

GetComponentInterface()

template<class ComponentType >

void * icomp::TSubelementStaticInfo< ComponentType >::GetComponentInterface ( const istd::CClassInfo &  interfaceType, IComponent &  component, const QByteArray &  subId  ) const

overridevirtual

Extract instance implemented specified interface from some component.

Implements icomp::IComponentInterfaceExtractor.

Definition at line 115 of file TSubelementStaticInfo.h.

References istd::CClassInfo::GetConstCasted(), istd::CClassInfo::GetName(), istd::CClassInfo::IsConst(), istd::CClassInfo::IsValid(), istd::CClassInfo::IsVoid(), and icomp::CBaseComponentStaticInfo::s_compInterfaceType.

GetMetaIds()

template<class ComponentType >

IElementStaticInfo::Ids icomp::TSubelementStaticInfo< ComponentType >::GetMetaIds ( int  metaGroupId ) const

overridevirtual

Get list of meta IDs associated with some meta key.

See also

MetaGroupId

Implements icomp::IElementStaticInfo.

Definition at line 89 of file TSubelementStaticInfo.h.

GetSubelementInfo()

template<class ComponentType >

const IElementStaticInfo * icomp::TSubelementStaticInfo< ComponentType >::GetSubelementInfo ( const QByteArray &  subcomponentId ) const

overridevirtual

Return number of interfaces for specific slot.

Parameters

subcomponentId

ID of subcomponent.

See also

GetMetaIds() and MGI_SUBELEMENTS.

Implements icomp::IElementStaticInfo.

Definition at line 106 of file TSubelementStaticInfo.h.

RegisterInterfaceExtractor()

template<class ComponentType >

void icomp::TSubelementStaticInfo< ComponentType >::RegisterInterfaceExtractor ( const QByteArray &  interfaceName, InterfaceExtractorPtr  extractorPtr  )

virtual

Register interface ID for this static component info.

This interface ID is used for static check if this component can be used to resolve reference dependecy of second one.

Definition at line 80 of file TSubelementStaticInfo.h.

Referenced by icomp::SubElementInterfaceRegistrator< InterfaceType, ComponentType >::SubElementInterfaceRegistrator().

---

The documentation for this class was generated from the following file:

• Acf/Include/icomp/TSubelementStaticInfo.h
