Standard implementation of static info for base component classes. More...

#include <CBaseComponentStaticInfo.h>

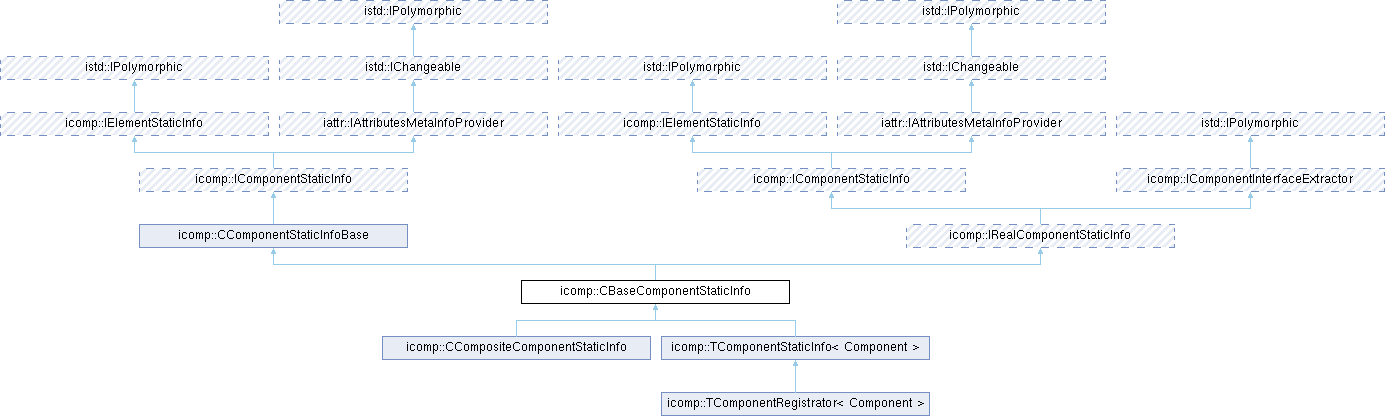

Inheritance diagram for icomp::CBaseComponentStaticInfo:

Public Types
typedef CComponentStaticInfoBase	BaseClass

typedef void (	InterfaceExtractorPtr) (IComponent &component)

Public Types inherited from icomp::IComponentStaticInfo
enum	ComponentType { CT_NONE , CT_REAL , CT_COMPOSITE }
	Specify type of the component realization. More...

enum	MetaGroupId { MGI_EMBEDDED_COMPONENTS = IElementStaticInfo::MGI_LAST + 1 , MGI_LAST = MGI_EMBEDDED_COMPONENTS }

Public Types inherited from icomp::IElementStaticInfo
enum	MetaGroupId { MGI_INTERFACES = 0 , MGI_SUBELEMENTS , MGI_LAST = MGI_SUBELEMENTS }

typedef QSet< QByteArray >	Ids

Public Types inherited from istd::IChangeable
enum	ChangeFlags { CF_ACF_INTERNAL = 0 , CF_ALL_DATA , CF_ANY , CF_DESTROYING , CF_DELEGATED , CF_NO_UNDO }
	Data model change notification flags. More...

enum	SupportedOperations { SO_NONE = 0 , SO_OBSERVE = 1 << 0 , SO_COPY = 1 << 1 , SO_CLONE = 1 << 2 , SO_COMPARE = 1 << 3 , SO_RESET = 1 << 4 }
	Flags for supported operations. More...

enum	CompatibilityMode { CM_STRICT , CM_WITHOUT_REFS , CM_WITH_REFS , CM_CONVERT }
	Control how relationship betweeen objects are interpreted. More...

typedef QMultiMap< QByteArray, QVariant >	ChangeInfoMap

Public Member Functions
	CBaseComponentStaticInfo (const IRealComponentStaticInfo *baseComponentPtr=NULL)

virtual void	RegisterInterfaceExtractor (const QByteArray &interfaceName, InterfaceExtractorPtr extractorPtr)
	Register interface ID for this static component info.

virtual void	RegisterAttributeInfo (const QByteArray &attributeId, const IAttributeStaticInfo *attributeInfoPtr)
	Register static attribute info.

virtual void	RegisterSubelementInfo (const QByteArray &subcomponentId, const IElementStaticInfo *staticInfoPtr)
	Register static subcomponent info.

virtual IComponentUniquePtr	CreateComponent () const override
	Create component instance.

virtual void *	GetComponentInterface (const istd::CClassInfo &interfaceType, IComponent &component, const QByteArray &subId) const override
	Extract instance implemented specified interface from some component.

virtual const IAttributeStaticInfo *	GetAttributeInfo (const QByteArray &attributeId) const override
	Get set of attributes.

virtual Ids	GetMetaIds (int metaGroupId) const override
	Get list of meta IDs associated with some meta key.

virtual const IElementStaticInfo *	GetSubelementInfo (const QByteArray &subcomponentId) const override
	Return number of interfaces for specific slot.

virtual iattr::IAttributesProvider::AttributeIds	GetAttributeMetaIds () const override
	Get all IDs of known attribute meta informations.

virtual const iattr::IAttributeMetaInfo *	GetAttributeMetaInfo (const QByteArray &attributeId) const override
	Get property with the given index.

Public Member Functions inherited from icomp::CComponentStaticInfoBase
virtual int	GetComponentType () const override
	Get information about component type.

virtual const IComponentStaticInfo *	GetEmbeddedComponentInfo (const QByteArray &embeddedId) const override
	Return number of interfaces for specific slot.

virtual const QString &	GetDescription () const override
	Get human readable description of this component.

virtual const QString &	GetKeywords () const override
	Get keywords for this component.

Public Member Functions inherited from istd::IPolymorphic
virtual	~IPolymorphic ()

Public Member Functions inherited from istd::IChangeable
virtual int	GetSupportedOperations () const
	Get set of flags for supported operations.

virtual bool	CopyFrom (const IChangeable &object, CompatibilityMode mode=CM_WITHOUT_REFS)
	Copy this object from another one.

virtual bool	IsEqual (const IChangeable &object) const
	Compare this object with another object.

virtual istd::TUniqueInterfacePtr< istd::IChangeable >	CloneMe (CompatibilityMode mode=CM_WITHOUT_REFS) const
	Make a copy of this object.

virtual bool	ResetData (CompatibilityMode mode=CM_WITHOUT_REFS)
	Reset data to its default state.

virtual void	BeginChanges (const ChangeSet &changeSet)
	Starts the change transaction.

virtual void	EndChanges (const ChangeSet &changeSet)
	Ends the change transaction.

virtual void	BeginChangeGroup (const ChangeSet &changeSet)
	Starts group of changes.

virtual void	EndChangeGroup (const ChangeSet &changeSet)
	Ends group of changes.

Static Public Attributes
static istd::CClassInfo	s_compInterfaceType

Additional Inherited Members
Static Public Member Functions inherited from istd::IChangeable
static const ChangeSet &	GetNoChanges ()
	Get empty set of changes.

static const ChangeSet &	GetAnyChange ()
	Get anonymous change set.

static const ChangeSet &	GetAllChanges ()
	Get anonymous change set.

static const ChangeSet &	GetDelegatedChanges ()
	Get delegated change set.

Protected Member Functions inherited from istd::IChangeable
virtual void	OnBeginChanges ()
	Callback function for begin change event.

virtual void	OnEndChanges (const ChangeSet &changeSet)
	Callback function for end change event.

Detailed Description

Standard implementation of static info for base component classes.

The main difference to 'normal' component static info is, that instances of such components cannot be created.

Definition at line 18 of file CBaseComponentStaticInfo.h.

Member Typedef Documentation

◆ BaseClass

typedef CComponentStaticInfoBase icomp::CBaseComponentStaticInfo::BaseClass

Definition at line 23 of file CBaseComponentStaticInfo.h.

◆ InterfaceExtractorPtr

typedef void *(* icomp::CBaseComponentStaticInfo::InterfaceExtractorPtr) (IComponent &component)

Definition at line 24 of file CBaseComponentStaticInfo.h.

Constructor & Destructor Documentation

◆ CBaseComponentStaticInfo()

icomp::CBaseComponentStaticInfo::CBaseComponentStaticInfo ( const IRealComponentStaticInfo * baseComponentPtr = NULL )

explicit

Member Function Documentation

◆ CreateComponent()

virtual IComponentUniquePtr icomp::CBaseComponentStaticInfo::CreateComponent ( ) const

overridevirtual

Create component instance.

Returns: pointer to created component or NULL if this component cannot be created.

Implements icomp::IRealComponentStaticInfo.

Reimplemented in icomp::CCompositeComponentStaticInfo, and icomp::TComponentStaticInfo< Component >.

◆ GetAttributeInfo()

virtual const IAttributeStaticInfo * icomp::CBaseComponentStaticInfo::GetAttributeInfo ( const QByteArray & attributeId ) const

overridevirtual

Get set of attributes.

Reimplemented from icomp::CComponentStaticInfoBase.

◆ GetAttributeMetaIds()

virtual iattr::IAttributesProvider::AttributeIds icomp::CBaseComponentStaticInfo::GetAttributeMetaIds ( ) const

overridevirtual

Get all IDs of known attribute meta informations.

Reimplemented from icomp::CComponentStaticInfoBase.

◆ GetAttributeMetaInfo()

virtual const iattr::IAttributeMetaInfo * icomp::CBaseComponentStaticInfo::GetAttributeMetaInfo ( const QByteArray & attributeId ) const

overridevirtual

Get property with the given index.

Reimplemented from icomp::CComponentStaticInfoBase.

◆ GetComponentInterface()

virtual void * icomp::CBaseComponentStaticInfo::GetComponentInterface	(	const istd::CClassInfo &	interfaceType,
		IComponent &	component,
		const QByteArray &	subId
	)		const

overridevirtual

Extract instance implemented specified interface from some component.

Implements icomp::IComponentInterfaceExtractor.

◆ GetMetaIds()

virtual Ids icomp::CBaseComponentStaticInfo::GetMetaIds ( int metaGroupId ) const

overridevirtual

Get list of meta IDs associated with some meta key.

See also: MetaGroupId

Reimplemented from icomp::CComponentStaticInfoBase.

◆ GetSubelementInfo()

virtual const IElementStaticInfo * icomp::CBaseComponentStaticInfo::GetSubelementInfo ( const QByteArray & subcomponentId ) const

overridevirtual

Return number of interfaces for specific slot.

Parameters

subcomponentId ID of subcomponent.

See also: GetMetaIds() and MGI_SUBELEMENTS.

Reimplemented from icomp::CComponentStaticInfoBase.

◆ RegisterAttributeInfo()

virtual void icomp::CBaseComponentStaticInfo::RegisterAttributeInfo	(	const QByteArray &	attributeId,
		const IAttributeStaticInfo *	attributeInfoPtr
	)

virtual

Register static attribute info.

Parameters

attributeId	ID of attribute.
attributeInfoPtr	static attribute info object used to describe attribute type and as factory. It cannot be NULL.

Referenced by icomp::TAttributeStaticInfo< Attribute >::TAttributeStaticInfo().

◆ RegisterInterfaceExtractor()

virtual void icomp::CBaseComponentStaticInfo::RegisterInterfaceExtractor	(	const QByteArray &	interfaceName,
		InterfaceExtractorPtr	extractorPtr
	)

virtual

Register interface ID for this static component info.

This interface ID is used for static check if this component can be used to resolve reference dependecy of second one.

Referenced by icomp::TInterfaceRegistrator< Interface >::TInterfaceRegistrator().

◆ RegisterSubelementInfo()

virtual void icomp::CBaseComponentStaticInfo::RegisterSubelementInfo	(	const QByteArray &	subcomponentId,
		const IElementStaticInfo *	staticInfoPtr
	)

virtual

Register static subcomponent info.

Parameters

subcomponentId	ID of this subcomponent.
componentInfoPtr	static subcomponent info object used to describe subcomponent type and as factory. It cannot be NULL.

Referenced by icomp::TSubelementStaticInfo< ComponentType >::TSubelementStaticInfo().

Member Data Documentation

◆ s_compInterfaceType

istd::CClassInfo icomp::CBaseComponentStaticInfo::s_compInterfaceType

static

Definition at line 26 of file CBaseComponentStaticInfo.h.

Referenced by icomp::TSubelementStaticInfo< ComponentType >::GetComponentInterface().

The documentation for this class was generated from the following file:

Acf/Include/icomp/CBaseComponentStaticInfo.h
