Simulation wrapper of component. More...

#include <TSimComponentsFactory.h>

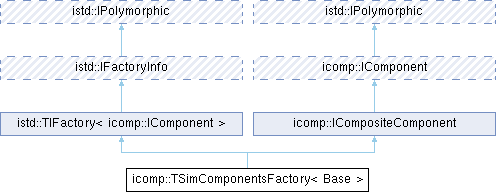

Inheritance diagram for icomp::TSimComponentsFactory< Base >:

Public Member Functions
	TSimComponentsFactory ()

TSimComponentWrap< Base > *	operator-> ()

virtual istd::IFactoryInfo::KeyList	GetFactoryKeys () const override
	Returns all possible keys for this factory.

virtual istd::TUniqueInterfacePtr< icomp::IComponent >	CreateInstance (const QByteArray &keyId="") const override
	Create an instance of the object, mapped to the keyId `keyId`.

virtual IComponentSharedPtr	GetSubcomponent (const QByteArray &componentId) const override
	Get access to subcomponent using its ID.

virtual IComponentContextSharedPtr	GetSubcomponentContext (const QByteArray &componentId) const override
	Get access to context of subcomponent using its ID.

virtual IComponentUniquePtr	CreateSubcomponent (const QByteArray &componentId) const override
	Create instance of subcomponent using its ID.

virtual void	OnSubcomponentDeleted (const IComponent *subcomponentPtr) override
	Called if subcomponent is removed from memory.

virtual const icomp::IComponent *	GetParentComponent (bool ownerOnly=false) const override
	Get parent of this component.

virtual void *	GetInterface (const istd::CClassInfo &interfaceType, const QByteArray &subId="") override
	Get access to specified component interface.

virtual icomp::IComponentContextSharedPtr	GetComponentContext () const override
	Get access to component context describing all application-specified component information loaded from components registry.

virtual void	SetComponentContext (const icomp::IComponentContextSharedPtr &contextPtr, const icomp::IComponent *parentPtr, bool isParentOwner) override
	Set component context of this component.

Public Member Functions inherited from istd::IPolymorphic
virtual	~IPolymorphic ()

Additional Inherited Members
Public Types inherited from istd::TIFactory< icomp::IComponent >
typedef icomp::IComponent	InterfaceType

Public Types inherited from istd::IFactoryInfo
typedef QSet< QByteArray >	KeyList

Detailed Description

template<class Base>
class icomp::TSimComponentsFactory< Base >

Simulation wrapper of component.

It allows to use components directly from static linked libraries, without component framework.

Definition at line 24 of file TSimComponentsFactory.h.

Constructor & Destructor Documentation

◆ TSimComponentsFactory()

template<class Base >

icomp::TSimComponentsFactory< Base >::TSimComponentsFactory ( )

Definition at line 64 of file TSimComponentsFactory.h.

References icomp::TSimComponentWrap< Base >::InitComponent().

Member Function Documentation

◆ CreateInstance()

template<class Base >

istd::TUniqueInterfacePtr< icomp::IComponent > icomp::TSimComponentsFactory< Base >::CreateInstance ( const QByteArray & keyId = "" ) const

overridevirtual

Create an instance of the object, mapped to the keyId keyId.

Parameters

keyId

Returns: unique pointer to created object or empty pointer if it was not possible to create it or keyId does not exist.

Implements istd::TIFactory< icomp::IComponent >.

Definition at line 82 of file TSimComponentsFactory.h.

References icomp::IComponent::SetComponentContext().

◆ CreateSubcomponent()

template<class Base >

icomp::IComponentUniquePtr icomp::TSimComponentsFactory< Base >::CreateSubcomponent ( const QByteArray & componentId ) const

overridevirtual

Create instance of subcomponent using its ID.

Implements icomp::ICompositeComponent.

Definition at line 114 of file TSimComponentsFactory.h.

References NULL.

◆ GetComponentContext()

template<class Base >

icomp::IComponentContextSharedPtr icomp::TSimComponentsFactory< Base >::GetComponentContext ( ) const

overridevirtual

Get access to component context describing all application-specified component information loaded from components registry.

Implements icomp::IComponent.

Definition at line 149 of file TSimComponentsFactory.h.

◆ GetFactoryKeys()

template<class Base >

istd::IFactoryInfo::KeyList icomp::TSimComponentsFactory< Base >::GetFactoryKeys ( ) const

overridevirtual

Returns all possible keys for this factory.

Retrieves the complete set of keys (identifiers) that this factory can use to create objects. Each key corresponds to a specific object type or variant that the factory knows how to instantiate.

Returns: A QSet containing all valid factory keys. The set may be empty if the factory cannot currently create any objects, but typically contains at least one key for factories that are properly configured.

Note: The returned set represents a snapshot of available keys at the time of the call. For dynamic factories, the available keys may change over time (e.g., through plugin loading).; Keys are typically case-sensitive QByteArray values. Clients should use exact string matching when working with factory keys.

// Example usage
IFactoryInfo* factory = GetFactory();
IFactoryInfo::KeyList keys = factory->GetFactoryKeys();

// Check if a specific type is available
if (keys.contains("mytype")) {
       // Create object using "mytype" key
}

// List all available types
for (const QByteArray& key : keys) {
       qDebug() << "Available type:" << key;
}

See also: istd::IFactory::CreateInstance()

Implements istd::IFactoryInfo.

Definition at line 73 of file TSimComponentsFactory.h.

◆ GetInterface()

template<class Base >

void * icomp::TSimComponentsFactory< Base >::GetInterface	(	const istd::CClassInfo &	interfaceType,
		const QByteArray &	subId = `""`
	)

overridevirtual

Get access to specified component interface.

Parameters

interfaceType	requested interface.
subId	some additional ID to identify subelement of this component.

Implements icomp::IComponent.

Definition at line 142 of file TSimComponentsFactory.h.

References icomp::IComponent::GetInterface().

◆ GetParentComponent()

template<class Base >

const icomp::IComponent * icomp::TSimComponentsFactory< Base >::GetParentComponent ( bool ownerOnly = false ) const

overridevirtual

Get parent of this component.

Parent is component who created this component. Parent component can be also owner of this component. It means manages life time of this componenent.

Parameters

ownerOnly indicate, that parent should be returned only if it owns this component.

Returns: pointer to parent component or NULL if parent is not accessible.

Implements icomp::IComponent.

Definition at line 135 of file TSimComponentsFactory.h.

References icomp::IComponent::GetParentComponent().

◆ GetSubcomponent()

template<class Base >

icomp::IComponentSharedPtr icomp::TSimComponentsFactory< Base >::GetSubcomponent ( const QByteArray & componentId ) const

overridevirtual

Get access to subcomponent using its ID.

Implements icomp::ICompositeComponent.

Definition at line 100 of file TSimComponentsFactory.h.

◆ GetSubcomponentContext()

template<class Base >

icomp::IComponentContextSharedPtr icomp::TSimComponentsFactory< Base >::GetSubcomponentContext ( const QByteArray & componentId ) const

overridevirtual

Get access to context of subcomponent using its ID.

Please note, that this does'n create component instance.

Implements icomp::ICompositeComponent.

Definition at line 107 of file TSimComponentsFactory.h.

◆ OnSubcomponentDeleted()

template<class Base >

void icomp::TSimComponentsFactory< Base >::OnSubcomponentDeleted ( const IComponent * subcomponentPtr )

overridevirtual

Called if subcomponent is removed from memory.

Parameters

subcomponentPtr pointer to component beeing removed. It cannot be NULL.

Implements icomp::ICompositeComponent.

Definition at line 126 of file TSimComponentsFactory.h.

◆ operator->()

template<class Base >

TSimComponentWrap< Base > * icomp::TSimComponentsFactory< Base >::operator-> ( )

inline

Definition at line 29 of file TSimComponentsFactory.h.

◆ SetComponentContext()

template<class Base >

void icomp::TSimComponentsFactory< Base >::SetComponentContext	(	const icomp::IComponentContextSharedPtr &	contextPtr,
		const icomp::IComponent *	parentPtr,
		bool	isParentOwner
	)

overridevirtual

Set component context of this component.

Parameters

contextPtr	new value of component context. It can be also NULL. Please avoid to use this method, it is designed for internal use only.
parentPtr	pointer to parent component, or NULL if this component has no parent.
isParentOwner	indicate, that life cycle of this component is controller by its parent.

Implements icomp::IComponent.

Definition at line 156 of file TSimComponentsFactory.h.

The documentation for this class was generated from the following file:

Acf/Include/icomp/TSimComponentsFactory.h
