Simulation wrapper of component. More...

#include <TSimComponentWrap.h>

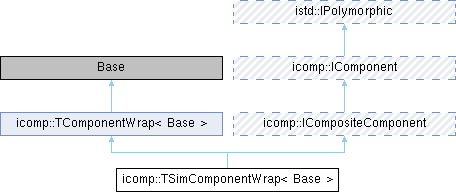

Inheritance diagram for icomp::TSimComponentWrap< Base >:

Classes
class	SimulationContext

Public Types
typedef TComponentWrap< Base >	BaseClass

Public Types inherited from icomp::TComponentWrap< Base >
typedef Base	BaseClass

Public Member Functions
	TSimComponentWrap ()

	~TSimComponentWrap ()

void	InitComponent ()
	Initialilze component after setting all its attributes and references.

bool	SetAttr (const QByteArray &attributeId, const iser::IObject *attributePtr)
	Set named attribute.

bool	SetRef (const QByteArray &referenceId, IComponentSharedPtr componentPtr, const QByteArray &subelementId="")
	Set named reference to some component.

bool	InsertMultiRef (const QByteArray &referenceId, IComponentSharedPtr componentPtr, const QByteArray &subelementId="")
	Set named reference to some component.

bool	SetFactory (const QByteArray &factoryId, const CSimComponentContextBase::ComponentsFactory *factoryPtr)
	Set factory of component instance.

bool	InsertMultiFactory (const QByteArray &factoryId, const CSimComponentContextBase::ComponentsFactory *factoryPtr)
	Insert new factory instance into multi-factory attribute.

bool	SetBoolAttr (const QByteArray &attributeId, bool value)
	Set instance of `bool` attribute.

bool	SetIntAttr (const QByteArray &attributeId, int value)
	Set instance of `int` attribute.

bool	SetDoubleAttr (const QByteArray &attributeId, double value)
	Set instance of `double` attribute.

bool	SetStringAttr (const QByteArray &attributeId, const QString &value)
	Set instance of `QString` attribute.

bool	SetIdAttr (const QByteArray &attributeId, const QByteArray &value)
	Set instance of `QByteArray` attribute.

template<class Attribute >
bool	InsertMultiAttr (const QByteArray &attributeId, const Attribute &attribute)
	Insert new attribute to multi attributes.

bool	InsertMultiAttr (const QByteArray &attributeId, const QString &attribute)

virtual IComponentSharedPtr	GetSubcomponent (const QByteArray &componentId) const override
	Get access to subcomponent using its ID.

virtual IComponentContextSharedPtr	GetSubcomponentContext (const QByteArray &componentId) const override
	Get access to context of subcomponent using its ID.

virtual IComponentUniquePtr	CreateSubcomponent (const QByteArray &componentId) const override
	Create instance of subcomponent using its ID.

virtual void	OnSubcomponentDeleted (const IComponent *subcomponentPtr) override
	Called if subcomponent is removed from memory.

virtual const IComponent *	GetParentComponent (bool ownerOnly=false) const override
	Get parent of this component.

Public Member Functions inherited from icomp::TComponentWrap< Base >
	TComponentWrap ()

virtual	~TComponentWrap ()

virtual void	SetComponentContext (const IComponentContextSharedPtr &contextPtr, const IComponent *parentPtr, bool isParentOwner) override

Public Member Functions inherited from icomp::IComponent
virtual void *	GetInterface (const istd::CClassInfo &interfaceType, const QByteArray &subId="")=0
	Get access to specified component interface.

virtual IComponentContextSharedPtr	GetComponentContext () const =0
	Get access to component context describing all application-specified component information loaded from components registry.

virtual void	SetComponentContext (const IComponentContextSharedPtr &contextPtr, const icomp::IComponent *parentPtr, bool isParentOwner)=0
	Set component context of this component.

Public Member Functions inherited from istd::IPolymorphic
virtual	~IPolymorphic ()

Protected Attributes
IComponentContextSharedPtr	m_contextPtr

IComponentSharedPtr	m_componentPtr

Detailed Description

template<class Base>
class icomp::TSimComponentWrap< Base >

Simulation wrapper of component.

It allows to use components directly from static linked libraries, without component framework.

Definition at line 23 of file TSimComponentWrap.h.

Member Typedef Documentation

◆ BaseClass

template<class Base >

typedef TComponentWrap<Base> icomp::TSimComponentWrap< Base >::BaseClass

Definition at line 28 of file TSimComponentWrap.h.

Constructor & Destructor Documentation

◆ TSimComponentWrap()

template<class Base >

icomp::TSimComponentWrap< Base >::TSimComponentWrap ( )

Definition at line 226 of file TSimComponentWrap.h.

References icomp::TSimComponentWrap< Base >::m_contextPtr.

◆ ~TSimComponentWrap()

template<class Base >

icomp::TSimComponentWrap< Base >::~TSimComponentWrap ( )

inline

Definition at line 32 of file TSimComponentWrap.h.

References icomp::TSimComponentWrap< Base >::m_contextPtr.

Member Function Documentation

◆ CreateSubcomponent()

template<class Base >

IComponentUniquePtr icomp::TSimComponentWrap< Base >::CreateSubcomponent ( const QByteArray & componentId ) const

overridevirtual

Create instance of subcomponent using its ID.

Implements icomp::ICompositeComponent.

Definition at line 259 of file TSimComponentWrap.h.

References icomp::TSimComponentWrap< Base >::SimulationContext::CreateSubcomponent().

◆ GetParentComponent()

template<class Base >

const IComponent * icomp::TSimComponentWrap< Base >::GetParentComponent ( bool ownerOnly = false ) const

overridevirtual

Get parent of this component.

Parent is component who created this component. Parent component can be also owner of this component. It means manages life time of this componenent.

Parameters

ownerOnly indicate, that parent should be returned only if it owns this component.

Returns: pointer to parent component or NULL if parent is not accessible.

Implements icomp::IComponent.

Definition at line 277 of file TSimComponentWrap.h.

References NULL.

◆ GetSubcomponent()

template<class Base >

IComponentSharedPtr icomp::TSimComponentWrap< Base >::GetSubcomponent ( const QByteArray & componentId ) const

overridevirtual

Get access to subcomponent using its ID.

Implements icomp::ICompositeComponent.

Definition at line 243 of file TSimComponentWrap.h.

References icomp::TSimComponentWrap< Base >::SimulationContext::GetSubcomponent().

◆ GetSubcomponentContext()

template<class Base >

icomp::IComponentContextSharedPtr icomp::TSimComponentWrap< Base >::GetSubcomponentContext ( const QByteArray & componentId ) const

overridevirtual

Get access to context of subcomponent using its ID.

Please note, that this does'n create component instance.

Implements icomp::ICompositeComponent.

Definition at line 252 of file TSimComponentWrap.h.

◆ InitComponent()

template<class Base >

void icomp::TSimComponentWrap< Base >::InitComponent ( )

Initialilze component after setting all its attributes and references.

Definition at line 234 of file TSimComponentWrap.h.

References NULL.

Referenced by icomp::TSimComponentsFactory< Base >::TSimComponentsFactory().

◆ InsertMultiAttr() [1/2]

template<class Base >

template<class Attribute >

bool icomp::TSimComponentWrap< Base >::InsertMultiAttr	(	const QByteArray &	attributeId,
		const Attribute &	attribute
	)

inline

Insert new attribute to multi attributes.

Parameters

attributeId	ID of attribute (multi attribute).
attribute	single attribute value.

Definition at line 150 of file TSimComponentWrap.h.

References icomp::CSimComponentContextBase::InsertMultiAttr(), and icomp::TSimComponentWrap< Base >::m_contextPtr.

◆ InsertMultiAttr() [2/2]

template<class Base >

bool icomp::TSimComponentWrap< Base >::InsertMultiAttr	(	const QByteArray &	attributeId,
		const QString &	attribute
	)

inline

Definition at line 157 of file TSimComponentWrap.h.

References icomp::CSimComponentContextBase::InsertMultiAttr(), and icomp::TSimComponentWrap< Base >::m_contextPtr.

◆ InsertMultiFactory()

template<class Base >

bool icomp::TSimComponentWrap< Base >::InsertMultiFactory	(	const QByteArray &	factoryId,
		const CSimComponentContextBase::ComponentsFactory *	factoryPtr
	)

inline

Insert new factory instance into multi-factory attribute.

Definition at line 87 of file TSimComponentWrap.h.

References icomp::CSimComponentContextBase::InsertMultiFactory(), and icomp::TSimComponentWrap< Base >::m_contextPtr.

◆ InsertMultiRef()

template<class Base >

bool icomp::TSimComponentWrap< Base >::InsertMultiRef	(	const QByteArray &	referenceId,
		IComponentSharedPtr	componentPtr,
		const QByteArray &	subelementId = `""`
	)

inline

Set named reference to some component.

Definition at line 67 of file TSimComponentWrap.h.

References icomp::CSimComponentContextBase::InsertMultiRef(), and icomp::TSimComponentWrap< Base >::m_contextPtr.

◆ OnSubcomponentDeleted()

template<class Base >

void icomp::TSimComponentWrap< Base >::OnSubcomponentDeleted ( const IComponent * subcomponentPtr )

overridevirtual

Called if subcomponent is removed from memory.

Parameters

subcomponentPtr pointer to component beeing removed. It cannot be NULL.

Implements icomp::ICompositeComponent.

Definition at line 268 of file TSimComponentWrap.h.

◆ SetAttr()

template<class Base >

bool icomp::TSimComponentWrap< Base >::SetAttr	(	const QByteArray &	attributeId,
		const iser::IObject *	attributePtr
	)

inline

Set named attribute.

Parameters

attributeId	ID of attribute.
attributePtr	pointer to attribute instance. It will be automatically deleted.

Definition at line 47 of file TSimComponentWrap.h.

References icomp::TSimComponentWrap< Base >::m_contextPtr, and icomp::CSimComponentContextBase::SetAttr().

◆ SetBoolAttr()

template<class Base >

bool icomp::TSimComponentWrap< Base >::SetBoolAttr	(	const QByteArray &	attributeId,
		bool	value
	)

inline

Set instance of bool attribute.

Definition at line 97 of file TSimComponentWrap.h.

References icomp::TSimComponentWrap< Base >::m_contextPtr, and icomp::CSimComponentContextBase::SetBoolAttr().

◆ SetDoubleAttr()

template<class Base >

bool icomp::TSimComponentWrap< Base >::SetDoubleAttr	(	const QByteArray &	attributeId,
		double	value
	)

inline

Set instance of double attribute.

Definition at line 117 of file TSimComponentWrap.h.

References icomp::TSimComponentWrap< Base >::m_contextPtr, and icomp::CSimComponentContextBase::SetDoubleAttr().

◆ SetFactory()

template<class Base >

bool icomp::TSimComponentWrap< Base >::SetFactory	(	const QByteArray &	factoryId,
		const CSimComponentContextBase::ComponentsFactory *	factoryPtr
	)

inline

Set factory of component instance.

Definition at line 77 of file TSimComponentWrap.h.

References icomp::TSimComponentWrap< Base >::m_contextPtr, and icomp::CSimComponentContextBase::SetFactory().

◆ SetIdAttr()

template<class Base >

bool icomp::TSimComponentWrap< Base >::SetIdAttr	(	const QByteArray &	attributeId,
		const QByteArray &	value
	)

inline

Set instance of QByteArray attribute.

Definition at line 137 of file TSimComponentWrap.h.

References icomp::TSimComponentWrap< Base >::m_contextPtr, and icomp::CSimComponentContextBase::SetIdAttr().

◆ SetIntAttr()

template<class Base >

bool icomp::TSimComponentWrap< Base >::SetIntAttr	(	const QByteArray &	attributeId,
		int	value
	)

inline

Set instance of int attribute.

Definition at line 107 of file TSimComponentWrap.h.

References icomp::TSimComponentWrap< Base >::m_contextPtr, and icomp::CSimComponentContextBase::SetIntAttr().

◆ SetRef()

template<class Base >

bool icomp::TSimComponentWrap< Base >::SetRef	(	const QByteArray &	referenceId,
		IComponentSharedPtr	componentPtr,
		const QByteArray &	subelementId = `""`
	)

inline

Set named reference to some component.

Definition at line 57 of file TSimComponentWrap.h.

References icomp::TSimComponentWrap< Base >::m_contextPtr, and icomp::CSimComponentContextBase::SetRef().

◆ SetStringAttr()

template<class Base >

bool icomp::TSimComponentWrap< Base >::SetStringAttr	(	const QByteArray &	attributeId,
		const QString &	value
	)

inline

Set instance of QString attribute.

Definition at line 127 of file TSimComponentWrap.h.

References icomp::TSimComponentWrap< Base >::m_contextPtr, and icomp::CSimComponentContextBase::SetStringAttr().

Member Data Documentation

◆ m_componentPtr

template<class Base >

IComponentSharedPtr icomp::TSimComponentWrap< Base >::m_componentPtr

protected

Definition at line 219 of file TSimComponentWrap.h.

◆ m_contextPtr

template<class Base >

IComponentContextSharedPtr icomp::TSimComponentWrap< Base >::m_contextPtr

protected

Definition at line 218 of file TSimComponentWrap.h.

The documentation for this class was generated from the following file:

Acf/Include/icomp/TSimComponentWrap.h

Classes

Public Types

Public Member Functions

Protected Attributes

Detailed Description

Member Typedef Documentation

◆ BaseClass

Constructor & Destructor Documentation

◆ TSimComponentWrap()

◆ ~TSimComponentWrap()

Member Function Documentation

◆ CreateSubcomponent()

◆ GetParentComponent()

◆ GetSubcomponent()

◆ GetSubcomponentContext()

◆ InitComponent()

◆ InsertMultiAttr() [1/2]

◆ InsertMultiAttr() [2/2]

◆ InsertMultiFactory()

◆ InsertMultiRef()

◆ OnSubcomponentDeleted()

◆ SetAttr()

◆ SetBoolAttr()

◆ SetDoubleAttr()

◆ SetFactory()

◆ SetIdAttr()

◆ SetIntAttr()

◆ SetRef()

◆ SetStringAttr()

Member Data Documentation

◆ m_componentPtr

◆ m_contextPtr
