#include <CSimComponentContextBase.h>

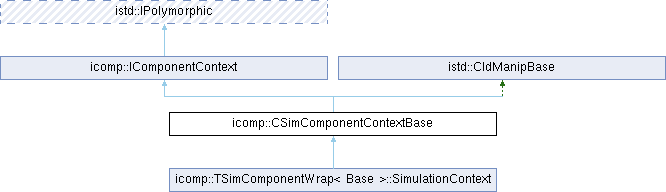

Inheritance diagram for icomp::CSimComponentContextBase:

Public Types
typedef istd::TIFactory< icomp::IComponent >	ComponentsFactory

Public Member Functions
	CSimComponentContextBase (const IComponentStaticInfo *infoPtr)

bool	SetAttr (const QByteArray &attributeId, const iser::IObject *attributePtr)
	Set named attribute.

bool	SetRef (const QByteArray &referenceId, IComponentSharedPtr componentPtr, const QByteArray &subelementId="")
	Set named reference to some component.

bool	InsertMultiRef (const QByteArray &referenceId, IComponentSharedPtr componentPtr, const QByteArray &subelementId="")
	Set named reference to some component.

bool	SetFactory (const QByteArray &factoryId, const ComponentsFactory *factoryPtr)
	Set factory of component instance.

bool	InsertMultiFactory (const QByteArray &factoryId, const ComponentsFactory *factoryPtr)
	Insert new factory instance into multi-factory attribute.

bool	SetBoolAttr (const QByteArray &attributeId, bool value)
	Set instance of `bool` attribute.

bool	SetIntAttr (const QByteArray &attributeId, int value)
	Set instance of `int` attribute.

bool	SetDoubleAttr (const QByteArray &attributeId, double value)
	Set instance of `double` attribute.

bool	SetStringAttr (const QByteArray &attributeId, const QString &value)
	Set instance of `QString` attribute.

bool	SetIdAttr (const QByteArray &attributeId, const QByteArray &value)
	Set instance of `QByteArray` attribute.

template<class Attribute >
bool	InsertMultiAttr (const QByteArray &attributeId, const Attribute &attribute)
	Insert new attribute to multi attributes.

bool	InsertMultiAttr (const QByteArray &attributeId, const QString &attribute)

virtual const IRegistryElement &	GetRegistryElement () const override
	Get access to component registry element object.

virtual const IComponentStaticInfo &	GetStaticInfo () const override
	Get component static info associated with this context.

virtual const IComponentContext *	GetParentContext () const override
	Get access to parent component context.

virtual const iser::IObject *	GetAttribute (const QByteArray &attributeId, int *definitionLevelPtr=NULL) const override
	Get attribute using its ID.

Public Member Functions inherited from icomp::IComponentContext
virtual const QByteArray &	GetContextId () const =0
	Get ID of this component in the context tree.

Public Member Functions inherited from istd::IPolymorphic
virtual	~IPolymorphic ()

Protected Types
typedef QMap< QByteArray, IComponentSharedPtr >	ComponentsMap

typedef QMap< QByteArray, const ComponentsFactory * >	FactoriesMap

Protected Member Functions
template<class AttrType >
bool	IsAttributeTypeCorrect (const QByteArray &attributeId)
	Check if attribute type is corrected.

Protected Attributes
ComponentsMap	m_componentsMap

FactoriesMap	m_factoriesMap

Additional Inherited Members
Static Protected Member Functions inherited from istd::CIdManipBase
static bool	SplitId (const QByteArray &complexId, QByteArray &baseId, QByteArray &subId)
	Split component ID into separated ID's.

static QByteArray	JoinId (const QByteArray &baseId, const QByteArray &subId)
	Join base component ID and sub ID into composed component ID.

Detailed Description

Definition at line 28 of file CSimComponentContextBase.h.

Member Typedef Documentation

◆ ComponentsFactory

typedef istd::TIFactory<icomp::IComponent> icomp::CSimComponentContextBase::ComponentsFactory

Definition at line 33 of file CSimComponentContextBase.h.

◆ ComponentsMap

typedef QMap<QByteArray, IComponentSharedPtr> icomp::CSimComponentContextBase::ComponentsMap

protected

Definition at line 141 of file CSimComponentContextBase.h.

◆ FactoriesMap

typedef QMap< QByteArray, const ComponentsFactory* > icomp::CSimComponentContextBase::FactoriesMap

protected

Definition at line 144 of file CSimComponentContextBase.h.

Constructor & Destructor Documentation

◆ CSimComponentContextBase()

icomp::CSimComponentContextBase::CSimComponentContextBase ( const IComponentStaticInfo * infoPtr )

explicit

Member Function Documentation

◆ GetAttribute()

virtual const iser::IObject * icomp::CSimComponentContextBase::GetAttribute	(	const QByteArray &	attributeId,
		int *	definitionLevelPtr = `NULL`
	)		const

overridevirtual

Get attribute using its ID.

Parameters

attributeId	ID of attribute.
definitionLevelPtr	optional return value. This will be set to number parents you have to iterate to get component where this attribute was defined. If this attribute was defined in actual component it equals 0.

Implements icomp::IComponentContext.

◆ GetParentContext()

virtual const IComponentContext * icomp::CSimComponentContextBase::GetParentContext ( ) const

overridevirtual

Get access to parent component context.

Implements icomp::IComponentContext.

◆ GetRegistryElement()

virtual const IRegistryElement & icomp::CSimComponentContextBase::GetRegistryElement ( ) const

overridevirtual

Get access to component registry element object.

State of the component context is based on this registry element (part of registry document describing component) and context parent.

Implements icomp::IComponentContext.

◆ GetStaticInfo()

virtual const IComponentStaticInfo & icomp::CSimComponentContextBase::GetStaticInfo ( ) const

overridevirtual

Get component static info associated with this context.

Implements icomp::IComponentContext.

◆ InsertMultiAttr() [1/2]

template<class Attribute >

bool icomp::CSimComponentContextBase::InsertMultiAttr	(	const QByteArray &	attributeId,
		const Attribute &	attribute
	)

inline

Insert new attribute to multi attributes.

Parameters

attributeId	ID of attribute (multi attribute).
attribute	single attribute value.

Definition at line 95 of file CSimComponentContextBase.h.

References icomp::IRegistryElement::AttributeInfo::attributePtr, icomp::CRegistryElement::GetAttributeInfo(), istd::CClassInfo::GetName(), istd::TPointerBase< Type >::GetPtr(), icomp::CRegistryElement::InsertAttributeInfo(), iattr::TMultiAttribute< Value >::InsertValue(), IsAttributeTypeCorrect(), istd::TPointerBase< Type >::IsValid(), NULL, and istd::TDelPtr< Type, Accessor >::SetPtr().

Referenced by icomp::TSimComponentWrap< Base >::InsertMultiAttr(), and icomp::TSimComponentWrap< Base >::InsertMultiAttr().

◆ InsertMultiAttr() [2/2]

bool icomp::CSimComponentContextBase::InsertMultiAttr	(	const QByteArray &	attributeId,
		const QString &	attribute
	)

◆ InsertMultiFactory()

bool icomp::CSimComponentContextBase::InsertMultiFactory	(	const QByteArray &	factoryId,
		const ComponentsFactory *	factoryPtr
	)

Insert new factory instance into multi-factory attribute.

Referenced by icomp::TSimComponentWrap< Base >::InsertMultiFactory().

◆ InsertMultiRef()

bool icomp::CSimComponentContextBase::InsertMultiRef	(	const QByteArray &	referenceId,
		IComponentSharedPtr	componentPtr,
		const QByteArray &	subelementId = `""`
	)

Set named reference to some component.

Referenced by icomp::TSimComponentWrap< Base >::InsertMultiRef().

◆ IsAttributeTypeCorrect()

template<class AttrType >

bool icomp::CSimComponentContextBase::IsAttributeTypeCorrect ( const QByteArray & attributeId )

protected

Check if attribute type is corrected.

Definition at line 156 of file CSimComponentContextBase.h.

References icomp::IComponentStaticInfo::GetAttributeInfo(), iattr::IAttributeMetaInfo::GetAttributeTypeId(), and NULL.

Referenced by InsertMultiAttr().

◆ SetAttr()

bool icomp::CSimComponentContextBase::SetAttr	(	const QByteArray &	attributeId,
		const iser::IObject *	attributePtr
	)

Set named attribute.

Parameters

attributeId	ID of attribute.
attributePtr	pointer to attribute instance. It will be automatically deleted.

Referenced by icomp::TSimComponentWrap< Base >::SetAttr().

◆ SetBoolAttr()

bool icomp::CSimComponentContextBase::SetBoolAttr	(	const QByteArray &	attributeId,
		bool	value
	)

Set instance of bool attribute.

Referenced by icomp::TSimComponentWrap< Base >::SetBoolAttr().

◆ SetDoubleAttr()

bool icomp::CSimComponentContextBase::SetDoubleAttr	(	const QByteArray &	attributeId,
		double	value
	)

Set instance of double attribute.

Referenced by icomp::TSimComponentWrap< Base >::SetDoubleAttr().

◆ SetFactory()

bool icomp::CSimComponentContextBase::SetFactory	(	const QByteArray &	factoryId,
		const ComponentsFactory *	factoryPtr
	)

Set factory of component instance.

Referenced by icomp::TSimComponentWrap< Base >::SetFactory().

◆ SetIdAttr()

bool icomp::CSimComponentContextBase::SetIdAttr	(	const QByteArray &	attributeId,
		const QByteArray &	value
	)

Set instance of QByteArray attribute.

Referenced by icomp::TSimComponentWrap< Base >::SetIdAttr().

◆ SetIntAttr()

bool icomp::CSimComponentContextBase::SetIntAttr	(	const QByteArray &	attributeId,
		int	value
	)

Set instance of int attribute.

Referenced by icomp::TSimComponentWrap< Base >::SetIntAttr().

◆ SetRef()

bool icomp::CSimComponentContextBase::SetRef	(	const QByteArray &	referenceId,
		IComponentSharedPtr	componentPtr,
		const QByteArray &	subelementId = `""`
	)

Set named reference to some component.

Referenced by icomp::TSimComponentWrap< Base >::SetRef().

◆ SetStringAttr()

bool icomp::CSimComponentContextBase::SetStringAttr	(	const QByteArray &	attributeId,
		const QString &	value
	)

Set instance of QString attribute.

Referenced by icomp::TSimComponentWrap< Base >::SetStringAttr().

Member Data Documentation

◆ m_componentsMap

ComponentsMap icomp::CSimComponentContextBase::m_componentsMap

protected

Definition at line 142 of file CSimComponentContextBase.h.

Referenced by icomp::TSimComponentWrap< Base >::SimulationContext::GetSubcomponent().

◆ m_factoriesMap

FactoriesMap icomp::CSimComponentContextBase::m_factoriesMap

protected

Definition at line 145 of file CSimComponentContextBase.h.

Referenced by icomp::TSimComponentWrap< Base >::SimulationContext::CreateSubcomponent().

The documentation for this class was generated from the following file:

Acf/Include/icomp/CSimComponentContextBase.h
