#include <TAttributeStaticInfo.h>

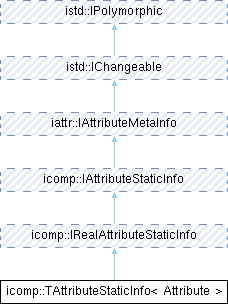

Inheritance diagram for icomp::TAttributeStaticInfo< Attribute >:

Public Member Functions
	TAttributeStaticInfo (icomp::CBaseComponentStaticInfo &staticInfo, const QByteArray &id, const QString &description, const Attribute *defaultValuePtr, int flags, const istd::CClassInfo &relatedInterfaceInfo)

virtual const QByteArray &	GetAttributeId () const override
	Get ID of this attribute.

virtual void	AddRelatedMetaId (int metaGroupId, const QByteArray &id, int flags) override
	Add related interface to this attribute info.

virtual IElementStaticInfo::Ids	GetRelatedMetaIds (int metaGroupId, int flags, int flagsMask) const override
	Get related meta information.

virtual QString	GetAttributeDescription () const override
	Get description of this attribute.

virtual const iser::IObject *	GetAttributeDefaultValue () const override
	Get default attribute value.

virtual QByteArray	GetAttributeTypeId () const override
	Return attribute type ID.

virtual int	GetAttributeFlags () const override
	Get flags of this attribute.

Public Member Functions inherited from istd::IChangeable
virtual int	GetSupportedOperations () const
	Get set of flags for supported operations.

virtual bool	CopyFrom (const IChangeable &object, CompatibilityMode mode=CM_WITHOUT_REFS)
	Copy this object from another one.

virtual bool	IsEqual (const IChangeable &object) const
	Compare this object with another object.

virtual istd::TUniqueInterfacePtr< istd::IChangeable >	CloneMe (CompatibilityMode mode=CM_WITHOUT_REFS) const
	Make a copy of this object.

virtual bool	ResetData (CompatibilityMode mode=CM_WITHOUT_REFS)
	Reset data to its default state.

virtual void	BeginChanges (const ChangeSet &changeSet)
	Starts the change transaction.

virtual void	EndChanges (const ChangeSet &changeSet)
	Ends the change transaction.

virtual void	BeginChangeGroup (const ChangeSet &changeSet)
	Starts group of changes.

virtual void	EndChangeGroup (const ChangeSet &changeSet)
	Ends group of changes.

Public Member Functions inherited from istd::IPolymorphic
virtual	~IPolymorphic ()

Additional Inherited Members
Public Types inherited from icomp::IAttributeStaticInfo
enum	AttributeFlags { AF_REFERENCE = 1 << 5 , AF_FACTORY = 1 << 6 , AF_TRANSLATABLE = 1 << 7 }
	Flags signalizing set of attribute properties. More...

Public Types inherited from iattr::IAttributeMetaInfo
enum	AttributeFlags { AF_OBLIGATORY = 1 << 0 , AF_NULLABLE = 1 << 1 , AF_SINGLE = 1 << 2 , AF_MULTIPLE = 1 << 3 , AF_VALUE = 1 << 4 , AF_READ_ONLY = 1 << 31 }
	Flags signalizing set of attribute properties. More...

Public Types inherited from istd::IChangeable
enum	ChangeFlags { CF_ACF_INTERNAL = 0 , CF_ALL_DATA , CF_ANY , CF_DESTROYING , CF_DELEGATED , CF_NO_UNDO }
	Data model change notification flags. More...

enum	SupportedOperations { SO_NONE = 0 , SO_OBSERVE = 1 << 0 , SO_COPY = 1 << 1 , SO_CLONE = 1 << 2 , SO_COMPARE = 1 << 3 , SO_RESET = 1 << 4 }
	Flags for supported operations. More...

enum	CompatibilityMode { CM_STRICT , CM_WITHOUT_REFS , CM_WITH_REFS , CM_CONVERT }
	Control how relationship betweeen objects are interpreted. More...

typedef QMultiMap< QByteArray, QVariant >	ChangeInfoMap

Static Public Member Functions inherited from istd::IChangeable
static const ChangeSet &	GetNoChanges ()
	Get empty set of changes.

static const ChangeSet &	GetAnyChange ()
	Get anonymous change set.

static const ChangeSet &	GetAllChanges ()
	Get anonymous change set.

static const ChangeSet &	GetDelegatedChanges ()
	Get delegated change set.

Protected Member Functions inherited from istd::IChangeable
virtual void	OnBeginChanges ()
	Callback function for begin change event.

virtual void	OnEndChanges (const ChangeSet &changeSet)
	Callback function for end change event.

Detailed Description

template<class Attribute>
class icomp::TAttributeStaticInfo< Attribute >

Definition at line 19 of file TAttributeStaticInfo.h.

Constructor & Destructor Documentation

◆ TAttributeStaticInfo()

template<class Attribute >

icomp::TAttributeStaticInfo< Attribute >::TAttributeStaticInfo	(	icomp::CBaseComponentStaticInfo &	staticInfo,
		const QByteArray &	id,
		const QString &	description,
		const Attribute *	defaultValuePtr,
		int	flags,
		const istd::CClassInfo &	relatedInterfaceInfo
	)
