#include <CObjectModificatorCompBase.h>

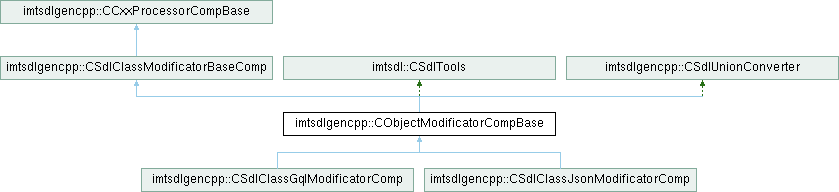

Inheritance diagram for imtsdlgencpp::CObjectModificatorCompBase:

Protected Member Functions
virtual QString	GetArrayContainerObjectVariableName () const =0
	Same as `GetContainerObjectVariableName`, but only for arrays/lists.

virtual bool	AddFieldValueWriteToObject (QTextStream &stream, const imtsdl::CSdlField &field, const QString &variableName, uint horizontalIndents) const =0
	Writes code, that sets a scalar value to an object.

virtual bool	AddObjectValueWriteToObject (QTextStream &stream, const imtsdl::CSdlField &field, const QString &variableName, uint horizontalIndents) const =0
	Same as `AddFieldValueWriteToObject`, but only for object's container as object i.e.

virtual QString	AddCreationOfTemporaryArray (QTextStream &stream, const imtsdl::CSdlField &field) const =0
	This method is used to create an array to store objects of the same type as the `field`.

virtual bool	AddFieldValueAppendToObjectArray (QTextStream &stream, const imtsdl::CSdlField &field, const QString &arrayContainerVariableName, const QString &variableName, uint horizontalIndents) const =0
	Writes code, that appends a scalar value to an object.

virtual bool	AddArrayWriteToObject (QTextStream &stream, const imtsdl::CSdlField &field, const QString &variableName, const QString &targetObjectVariableName, uint horizontalIndents) const =0
	writes code, that sets an array `variableName` to an object `targetObjectVariableName`

virtual bool	AddContainerValueCheckConditionBegin (QTextStream &stream, const imtsdl::CSdlField &field, bool expected, quint16 horizontalIndents) const =0
	Writes a begin of code, that checks whether the object contains a value.

virtual bool	AddContainerValueReadFromObject (QTextStream &stream, const imtsdl::CSdlField &field, const QString &variableName, quint16 horizontalIndents) const =0
	Writes a begin of code, that reads a value from an object.

virtual bool	AddContainerListAccessCode (QTextStream &stream, const imtsdl::CSdlField &field, const QString &variableName, quint16 horizontalIndents, ListAccessResult &result) const =0
	Writes code, that obtains a value from an object as list.

virtual void	WriteTypenameToObjectCode (QTextStream &stream, const imtsdl::CSdlType &sdlType) const =0
	Writes code that writes the typename to an object.

virtual QString	GetUnionListElementType (bool forScalar) const

void	WriteSetValueToStruct (QTextStream &stream, const imtsdl::CSdlField &field, const QString &objectName=QStringLiteral("object")) const
	Simply generates a start of code, that sets a value to struct like.

Additional Inherited Members
Protected Types inherited from imtsdlgencpp::CSdlUnionConverter
enum	ConversionType { CT_MODEL_SCALAR = 2 , CT_MODEL_ARRAY = 3 , CT_GQL_SCALAR = 8 , CT_GQL_ARRAY = 12 , CT_JSON_SCALAR = 32 , CT_JSON_ARRAY = 48 }

Static Protected Member Functions inherited from imtsdl::CSdlTools
static QString	ConvertTypeOrEnumOrUnion (const CSdlField &sdlField, const SdlEnumList &enumList, const SdlUnionList &unionList, bool isCustomPtr=nullptr, bool isComplexPtr=nullptr, bool isArrayPtr=nullptr, bool isEnumPtr=nullptr, bool *isUnion=nullptr)

static std::shared_ptr< CSdlEntryBase >	GetSdlTypeOrEnumOrUnionForField (const CSdlField &sdlField, const SdlTypeList &typeList, const SdlEnumList &enumList, const SdlUnionList &unionList)

static QMap< QString, QString >	CalculateTargetCppFilesFromSchemaParams (const iprm::IParamsSet &schemaParams, const ISdlProcessArgumentsParser &argumentParser, bool relativePath=false)

static QString	GetCompleteOutputPath (const iprm::IParamsSet &schemaParams, const ISdlProcessArgumentsParser &argumentParser, bool cleanPath, bool cppPath)
	resolves a complete output path from schema params and template(if enabled) if template is not enabled, returns `argumentParser.GetOutputDirectoryPath()`

static QString	GetTempOutputPathFromParams (const iprm::IParamsSet *paramsPtr, const QString &fallbackPath=QString())
	extracts a temp path from `paramsPtr` ant returns it on successfull, returns `fallbackPath` otherwise

Static Protected Attributes inherited from imtsdl::CSdlTools
static QString	s_sdlGlobalPrefix
	Defines an SDL scheme namespace prefix.

Detailed Description

The base C++ class modificator, adds saving and loading generated SDL types to/from 'object'

Warning: ALL modificators MUST inherit from this class!

Definition at line 20 of file CObjectModificatorCompBase.h.

Member Function Documentation

◆ AddArrayWriteToObject()

virtual bool imtsdlgencpp::CObjectModificatorCompBase::AddArrayWriteToObject	(	QTextStream &	stream,
		const imtsdl::CSdlField &	field,
		const QString &	variableName,
		const QString &	targetObjectVariableName,
		uint	horizontalIndents
	)		const

protectedpure virtual

writes code, that sets an array variableName to an object targetObjectVariableName

// C++ code before
QJsonArray newValuesArray;
// somehow fill an array
// example of C++ generated code
jsonObject["values"] = newValuesArray;

◆ AddContainerListAccessCode()

virtual bool imtsdlgencpp::CObjectModificatorCompBase::AddContainerListAccessCode	(	QTextStream &	stream,
		const imtsdl::CSdlField &	field,
		const QString &	variableName,
		quint16	horizontalIndents,
		ListAccessResult &	result
	)		const

protectedpure virtual

Writes code, that obtains a value from an object as list.

// example of C++ generated code
      const QJsonArray vsluesArray = jsonObject["values"].toArray();
      const qsizetype valuesArrayCount = valuesArray.size();

this method MUST fill result with correct values ListAccessResult::listVariableName = "vsluesArray", because it is a list storage ListAccessResult::listCountVariableName = "valuesArrayCount", because it indicates a number of elements ListAccessResult::listCountVariableType = "qsizetype", because a type of count variable ListAccessResult::customListAccessMethodName = {NULL|"at"}, because the QJsonArray (a container of objects) uses operator[] or method at() to access items by index ListAccessResult::toObjectTransformMethod = ".toJsonObject()", bacause access by index returns QJsonValue, but we need a QJsonObject in case JSON for custom types ListAccessResult::toObjectTransformMethod = ".toString()", bacause access by index returns QJsonValue, but we need a QString in case JSON if a field is string

◆ AddContainerValueCheckConditionBegin()

virtual bool imtsdlgencpp::CObjectModificatorCompBase::AddContainerValueCheckConditionBegin	(	QTextStream &	stream,
		const imtsdl::CSdlField &	field,
		bool	expected,
		quint16	horizontalIndents
	)		const

protectedpure virtual

Writes a begin of code, that checks whether the object contains a value.

Parameters

expected - if true, that mens, the value MUST exists in the object

Note: this method MUST Depending on the type, generate a different result, even if it is complex type

// example of C++ generated code if \c expected == true

if (jsonObject.contains("value") && jsonObject["value"].isString()){

// example of C++ generated code if \c expected == false

if (!jsonObject.contains("value") || !jsonObject["value"].isString()){

◆ AddContainerValueReadFromObject()

virtual bool imtsdlgencpp::CObjectModificatorCompBase::AddContainerValueReadFromObject	(	QTextStream &	stream,
		const imtsdl::CSdlField &	field,
		const QString &	variableName,
		quint16	horizontalIndents
	)		const

protectedpure virtual

Writes a begin of code, that reads a value from an object.

Warning: this method MUST NOT write endian semicolon(;)!

// example of C++ generated code

jsonObject["value"].toString()

◆ AddCreationOfTemporaryArray()

virtual QString imtsdlgencpp::CObjectModificatorCompBase::AddCreationOfTemporaryArray	(	QTextStream &	stream,
		const imtsdl::CSdlField &	field
	)		const

protectedpure virtual

This method is used to create an array to store objects of the same type as the field.

//example of C++ generated code

QJsonArray newValuesArray;

//another example of C++ generated code for mote complex object
      ::imtbase::CTreeItemModel* newValuesModelPtr = model.AddTreeModel("values", modelIndex);


Returns: a name of created container if operation is successful and a NULL string otherwise

Warning: returned value MUST be uniquie for each fieldId

See also: CSdlField::GetId(); QString::isNull()

◆ AddFieldValueAppendToObjectArray()

virtual bool imtsdlgencpp::CObjectModificatorCompBase::AddFieldValueAppendToObjectArray	(	QTextStream &	stream,
		const imtsdl::CSdlField &	field,
		const QString &	arrayContainerVariableName,
		const QString &	variableName,
		uint	horizontalIndents
	)		const

protectedpure virtual

Writes code, that appends a scalar value to an object.

Parameters

field	- field to set
arrayContainerVariableName	- name of an array, to store elements, types of a `field`
variableName	- variable name, that contains a value to be added to an array `arrayContainerVariableName`, conforms to a `field`
horizontalIndents	- for multiline generation, defines, how much tabs SHOULD be inserted after at each new line (except for the first one)

// example of C++ generated code

valuesJsonArray << aValue;

Warning: this mthod SHOULD NOT add leading and ending horizontal/vertical indents. The stream is already at the correct position.

Returns: true - if write to stream is succesfull and false otherwise

◆ AddFieldValueWriteToObject()

virtual bool imtsdlgencpp::CObjectModificatorCompBase::AddFieldValueWriteToObject	(	QTextStream &	stream,
		const imtsdl::CSdlField &	field,
		const QString &	variableName,
		uint	horizontalIndents
	)		const

protectedpure virtual

Writes code, that sets a scalar value to an object.

Parameters

field	- field to set
variableName	- variable name, that contains a value to be set, conforms to a `field`
horizontalIndents	- for multiline generation, defines, how much tabs SHOULD be inserted after at each new line (except for the first one)

// example of C++ generated code

jsonObject["value"] = *m_value;

Warning: this mthod SHOULD NOT add leading and ending horizontal/vertical indents. The stream is already at the correct position.

Returns: true - if write to stream is succesfull and false otherwise

◆ AddObjectValueWriteToObject()

virtual bool imtsdlgencpp::CObjectModificatorCompBase::AddObjectValueWriteToObject	(	QTextStream &	stream,
		const imtsdl::CSdlField &	field,
		const QString &	variableName,
		uint	horizontalIndents
	)		const

protectedpure virtual

Same as AddFieldValueWriteToObject, but only for object's container as object i.e.

for custom user's types

See also: AddFieldValueWriteToObject

// C++ code before
QJsonObject newValueJsonObject;
// somehow create a valid JSON...
// example of C++ generated code
jsonObject["value"] = newValueJsonObject;

◆ GetArrayContainerObjectVariableName()

virtual QString imtsdlgencpp::CObjectModificatorCompBase::GetArrayContainerObjectVariableName ( ) const

protectedpure virtual

Same as GetContainerObjectVariableName, but only for arrays/lists.

Warning: it MUST NOT be identical to GetContainerObjectVariableName!

See also: GetContainerObjectVariableName

◆ GetUnionListElementType()

virtual QString imtsdlgencpp::CObjectModificatorCompBase::GetUnionListElementType ( bool forScalar ) const

protectedvirtual

Todo:: refactor it and describe

◆ WriteSetValueToStruct()

void imtsdlgencpp::CObjectModificatorCompBase::WriteSetValueToStruct	(	QTextStream &	stream,
		const imtsdl::CSdlField &	field,
		const QString &	objectName = `QStringLiteral("object")`
	)		const

protected

Simply generates a start of code, that sets a value to struct like.

*object.value =

◆ WriteTypenameToObjectCode()

virtual void imtsdlgencpp::CObjectModificatorCompBase::WriteTypenameToObjectCode	(	QTextStream &	stream,
		const imtsdl::CSdlType &	sdlType
	)		const

protectedpure virtual

Writes code that writes the typename to an object.

// example of C++ generated code

jsonObject["__typename"] = QStringLiteral("TypeName");
