imtbase::IObjectCollection

#include <IObjectCollection.h>

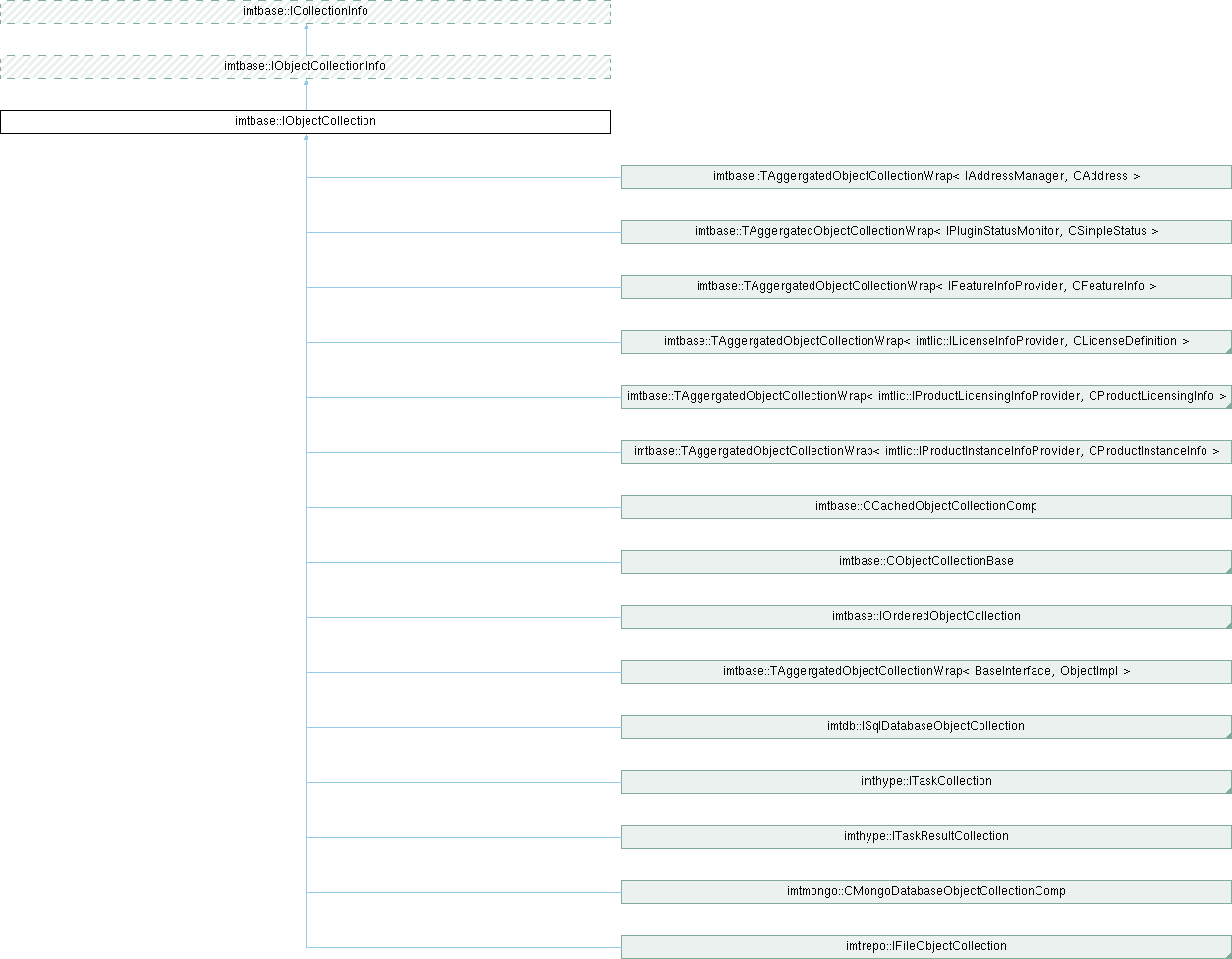

Inheritance diagram for imtbase::IObjectCollection:

Public Types
enum	OperationalFlags {   OF_SUPPORT_RENAME = 1 , OF_SUPPORT_INSERT = 2 , OF_SUPPORT_DELETE = 4 , OF_SUPPORT_EDIT = 8 ,   OF_SUPPORT_USING = 16 , OF_SUPPORT_PAGINATION = 32 , OF_ALL = OF_SUPPORT_RENAME | OF_SUPPORT_INSERT | OF_SUPPORT_DELETE | OF_SUPPORT_EDIT | OF_SUPPORT_USING | OF_SUPPORT_PAGINATION }
Public Types inherited from imtbase::ICollectionInfo
enum	ChangeFlags {   CF_ADDED = 10000 , CF_ELEMENT_RENAMED , CF_ELEMENT_DESCRIPTION_CHANGED , CF_ELEMENT_STATE ,   CF_REMOVED , CF_RESTORED , CF_LAST }
enum	ElementInfoType { EIT_NAME , EIT_DESCRIPTION , EIT_ENABLED , EIT_USER = 1000 }
enum	MetaInfoType {   MIT_INSERTION_USER = idoc::IDocumentMetaInfo::MIT_USER + 10000 , MIT_INSERTION_TIME , MIT_LAST_OPERATION_USER , MIT_LAST_OPERATION_TIME ,   MIT_PREVIEW_THUMBNAIL , MIT_REVISION = idoc::IDocumentMetaInfo::MIT_USER + 20000 }

Public Member Functions
virtual const IRevisionController *	GetRevisionController () const =0
virtual const ICollectionDataController *	GetDataController () const =0
virtual int	GetOperationFlags (const Id &elementId=Id()) const =0
virtual Id	InsertNewObject (const QByteArray &typeId, const QString &name, const QString &description, const istd::IChangeable *defaultValuePtr=nullptr, const Id &proposedElementId=Id(), const idoc::IDocumentMetaInfo *dataMetaInfoPtr=nullptr, const idoc::IDocumentMetaInfo *elementMetaInfoPtr=nullptr, const IOperationContext *operationContextPtr=nullptr)=0
virtual bool	RemoveElements (const Ids &elementIds, const IOperationContext *operationContextPtr=nullptr)=0
virtual bool	RemoveElementSet (const iprm::IParamsSet *selectionParamsPtr=nullptr, const IOperationContext *operationContextPtr=nullptr)=0
virtual bool	RestoreObjects (const Ids &objectIds, const IOperationContext *operationContextPtr=nullptr)=0
virtual bool	RestoreObjectSet (const iprm::IParamsSet *selectionParamsPtr=nullptr, const IOperationContext *operationContextPtr=nullptr)=0
virtual const istd::IChangeable *	GetObjectPtr (const Id &objectId) const =0
template<typename Interface >
const Interface *	GetObjectPtr (const Id &objectId) const
virtual bool	GetObjectData (const Id &objectId, DataPtr &dataPtr, const iprm::IParamsSet *dataConfigurationPtr=nullptr) const =0
virtual bool	SetObjectData (const Id &objectId, const istd::IChangeable &object, CompatibilityMode mode=CM_WITHOUT_REFS, const IOperationContext *operationContextPtr=nullptr)=0
virtual istd::TUniqueInterfacePtr< IObjectCollection >	CreateSubCollection (int offset=0, int count=-1, const iprm::IParamsSet *selectionParamsPtr=nullptr) const =0
virtual imtbase::IObjectCollectionIterator *	CreateObjectCollectionIterator (const QByteArray &objectId=QByteArray(), int offset=0, int count=-1, const iprm::IParamsSet *selectionParamsPtr=nullptr) const =0
virtual void	ResetObjectIds ()
Public Member Functions inherited from imtbase::IObjectCollectionInfo
virtual const iprm::IOptionsList *	GetObjectTypesInfo () const =0
virtual Id	GetObjectTypeId (const Id &objectId) const =0
virtual idoc::MetaInfoPtr	GetDataMetaInfo (const Id &objectId) const =0
Public Member Functions inherited from imtbase::ICollectionInfo
virtual int	GetElementsCount (const iprm::IParamsSet *selectionParamsPtr=nullptr, ilog::IMessageConsumer *logPtr=nullptr) const =0
virtual Ids	GetElementIds (int offset=0, int count=-1, const iprm::IParamsSet *selectionParamsPtr=nullptr, ilog::IMessageConsumer *logPtr=nullptr) const =0
virtual bool	GetSubsetInfo (ICollectionInfo &subsetInfo, int offset=0, int count=-1, const iprm::IParamsSet *selectionParamsPtr=nullptr, ilog::IMessageConsumer *logPtr=nullptr) const =0
virtual QVariant	GetElementInfo (const Id &elementId, int infoType, ilog::IMessageConsumer *logPtr=nullptr) const =0
virtual idoc::MetaInfoPtr	GetElementMetaInfo (const Id &elementId, ilog::IMessageConsumer *logPtr=nullptr) const =0
virtual bool	SetElementName (const Id &elementId, const QString &name, ilog::IMessageConsumer *logPtr=nullptr)=0
virtual bool	SetElementDescription (const Id &elementId, const QString &description, ilog::IMessageConsumer *logPtr=nullptr)=0
virtual bool	SetElementEnabled (const Id &elementId, bool isEnabled=true, ilog::IMessageConsumer *logPtr=nullptr)=0

Detailed Description

Common interface for a data object collection.

Definition at line 29 of file IObjectCollection.h.

Member Enumeration Documentation

OperationalFlags

enum imtbase::IObjectCollection::OperationalFlags

Flags for describing operational constraints on the collection items or the collection itself.

Enumerator
OF_SUPPORT_RENAME	If active, the obejects can be renamed inside of the collection.
OF_SUPPORT_INSERT	If active, the objects can be inserted into the collection.
OF_SUPPORT_DELETE	If active, deleting of objects in the collection is possible.
OF_SUPPORT_EDIT	If active, editing of objects in the collection is possible.
OF_SUPPORT_USING	If active, using of objects in the collection is possible.
OF_SUPPORT_PAGINATION	If active, the collection supports access to the ordered sub-set of the collection elements.
OF_ALL	All options are enabled.

Definition at line 45 of file IObjectCollection.h.

Member Function Documentation

CreateObjectCollectionIterator()

virtual imtbase::IObjectCollectionIterator * imtbase::IObjectCollection::CreateObjectCollectionIterator ( const QByteArray &  objectId = QByteArray(), int  offset = 0, int  count = -1, const iprm::IParamsSet *  selectionParamsPtr = nullptr  ) const

pure virtual

Create a collection iterator according to the given filtering/sorting parameters.

Parameters

offset	[optional] Index offset of the first element
count	[optional] If positive, the number of elements should be returned.
selectionParamsPtr	[optional] Additional parameters for filtering/ordering elements.

CreateSubCollection()

virtual istd::TUniqueInterfacePtr< IObjectCollection > imtbase::IObjectCollection::CreateSubCollection ( int  offset = 0, int  count = -1, const iprm::IParamsSet *  selectionParamsPtr = nullptr  ) const

pure virtual

Create a sub-collection (a subset) of the whole collection according to the given filtering/sorting parameters.

Parameters

offset	[optional] Index offset of the first element
count	[optional] If positive, the number of elements should be returned.
selectionParamsPtr	[optional] Additional parameters for filtering/ordering elements.

GetDataController()

virtual const ICollectionDataController * imtbase::IObjectCollection::GetDataController ( ) const

pure virtual

Get access to the data controller of the collection, if available.

GetObjectData()

virtual bool imtbase::IObjectCollection::GetObjectData ( const Id &  objectId, DataPtr &  dataPtr, const iprm::IParamsSet *  dataConfigurationPtr = nullptr  ) const

pure virtual

Get object data instance for the entry with the given ID.

GetObjectPtr() [1/2]

template<typename Interface >

const Interface * imtbase::IObjectCollection::GetObjectPtr ( const Id &  objectId ) const

inline

Get access to the object instance inside of collecton.

Note

This method should return a valid instance for an object only for objects that are permanent in the collection and have the given interface.

Definition at line 173 of file IObjectCollection.h.

References GetObjectPtr().

GetObjectPtr() [2/2]

virtual const istd::IChangeable * imtbase::IObjectCollection::GetObjectPtr ( const Id &  objectId ) const

pure virtual

Get access to the object instance inside of collecton.

Note

This method should return a valid instance for an object only for objects that are permanent in the collection (fixed).

Referenced by GetObjectPtr().

GetOperationFlags()

virtual int imtbase::IObjectCollection::GetOperationFlags ( const Id &  elementId = Id() ) const

pure virtual

Get binary flags describing the possible operations on the single object or on the whole collection.

Parameters

objectId

ID of the object for quering flags. If this parameter is empty, the flags for entire collection will be returned.

GetRevisionController()

virtual const IRevisionController * imtbase::IObjectCollection::GetRevisionController ( ) const

pure virtual

Get access to the revision controller of the collection, if available.

InsertNewObject()

virtual Id imtbase::IObjectCollection::InsertNewObject ( const QByteArray &  typeId, const QString &  name, const QString &  description, const istd::IChangeable *  defaultValuePtr = nullptr, const Id &  proposedElementId = Id(), const idoc::IDocumentMetaInfo *  dataMetaInfoPtr = nullptr, const idoc::IDocumentMetaInfo *  elementMetaInfoPtr = nullptr, const IOperationContext *  operationContextPtr = nullptr  )

pure virtual

Create a new object in the container.

Parameters

typeId	Type-ID of the object to be created.
name	Name of the object in the collection.
description	Descrpition of the object.
defaultValuePtr	Optional instance used for the object data initialization.
proposedElementId	Optional-defined ID of the object in the collection. If the value is non-empty inserted object become specified ID if possible.
dataMetaInfoPtr	Optional-defined meta-information for the data content.
elementMetaInfoPtr	Optional-defined meta-information for the collection element.

Returns

If the operation was successful the method will return ID of the created data object in the collection or an empty ID otherwise.

RemoveElements()

virtual bool imtbase::IObjectCollection::RemoveElements ( const Ids &  elementIds, const IOperationContext *  operationContextPtr = nullptr  )

pure virtual

Remove element with the given ID.

RemoveElementSet()

virtual bool imtbase::IObjectCollection::RemoveElementSet ( const iprm::IParamsSet *  selectionParamsPtr = nullptr, const IOperationContext *  operationContextPtr = nullptr  )

pure virtual

Remove element with the given filter.

Parameters

selectionParamsPtr

The filter by which the selection will be made for deletion. If it is null, then everything will be deleted.

ResetObjectIds()

void imtbase::IObjectCollection::ResetObjectIds ( )

inlinevirtual

This method will re-create all object-IDs.

Note

Possible references to the objects in this collection will be lost after this operation.

Definition at line 225 of file IObjectCollection.h.

RestoreObjects()

virtual bool imtbase::IObjectCollection::RestoreObjects ( const Ids &  objectIds, const IOperationContext *  operationContextPtr = nullptr  )

pure virtual

Restore objects with the given IDs.

RestoreObjectSet()

virtual bool imtbase::IObjectCollection::RestoreObjectSet ( const iprm::IParamsSet *  selectionParamsPtr = nullptr, const IOperationContext *  operationContextPtr = nullptr  )

pure virtual

Restore objects with the given filter.

Parameters

selectionParamsPtr

The filter by which the selection will be made for restoring. If it is null, then everything will be restored.

SetObjectData()

virtual bool imtbase::IObjectCollection::SetObjectData ( const Id &  objectId, const istd::IChangeable &  object, CompatibilityMode  mode = CM_WITHOUT_REFS, const IOperationContext *  operationContextPtr = nullptr  )

pure virtual

Set data for the entry with the given ID.
