Component for binding of multiple command providers. More...

#include <CCommandsBinderComp.h>

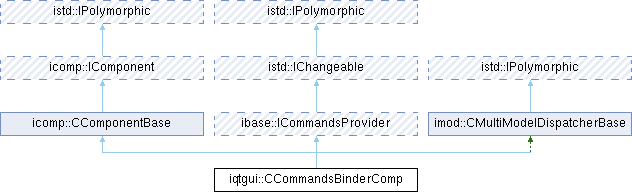

Inheritance diagram for iqtgui::CCommandsBinderComp:

Public Types
typedef icomp::CComponentBase	BaseClass

Public Types inherited from ibase::ICommandsProvider
enum	ChangeFlags { CF_COMMANDS = 0x62b7e8 }

Public Types inherited from istd::IChangeable
enum	ChangeFlags { CF_ACF_INTERNAL = 0 , CF_ALL_DATA , CF_ANY , CF_DESTROYING , CF_DELEGATED , CF_NO_UNDO }
	Data model change notification flags. More...

enum	SupportedOperations { SO_NONE = 0 , SO_OBSERVE = 1 << 0 , SO_COPY = 1 << 1 , SO_CLONE = 1 << 2 , SO_COMPARE = 1 << 3 , SO_RESET = 1 << 4 }
	Flags for supported operations. More...

enum	CompatibilityMode { CM_STRICT , CM_WITHOUT_REFS , CM_WITH_REFS , CM_CONVERT }
	Control how relationship betweeen objects are interpreted. More...

typedef QMultiMap< QByteArray, QVariant >	ChangeInfoMap

Public Member Functions
	CCommandsBinderComp ()

virtual const ibase::IHierarchicalCommand *	GetCommands () const override
	Get list of menu commands.

Public Member Functions inherited from icomp::CComponentBase
	CComponentBase ()
	Create component and assign it to specific context.

virtual const icomp::IComponent *	GetParentComponent (bool ownerOnly=false) const override
	Get parent of this component.

virtual void *	GetInterface (const istd::CClassInfo &interfaceType, const QByteArray &subId="") override
	Get access to specified component interface.

virtual IComponentContextSharedPtr	GetComponentContext () const override
	Get access to component context describing all application-specified component information loaded from components registry.

virtual void	SetComponentContext (const IComponentContextSharedPtr &contextPtr, const icomp::IComponent *parentPtr, bool isParentOwner) override
	Set component context of this component.

Public Member Functions inherited from istd::IPolymorphic
virtual	~IPolymorphic ()

Public Member Functions inherited from istd::IChangeable
virtual int	GetSupportedOperations () const
	Get set of flags for supported operations.

virtual bool	CopyFrom (const IChangeable &object, CompatibilityMode mode=CM_WITHOUT_REFS)
	Copy this object from another one.

virtual bool	IsEqual (const IChangeable &object) const
	Compare this object with another object.

virtual istd::TUniqueInterfacePtr< istd::IChangeable >	CloneMe (CompatibilityMode mode=CM_WITHOUT_REFS) const
	Make a copy of this object.

virtual bool	ResetData (CompatibilityMode mode=CM_WITHOUT_REFS)
	Reset data to its default state.

virtual void	BeginChanges (const ChangeSet &changeSet)
	Starts the change transaction.

virtual void	EndChanges (const ChangeSet &changeSet)
	Ends the change transaction.

virtual void	BeginChangeGroup (const ChangeSet &changeSet)
	Starts group of changes.

virtual void	EndChangeGroup (const ChangeSet &changeSet)
	Ends group of changes.

Protected Member Functions
void	OnModelChanged (int modelId, const istd::IChangeable::ChangeSet &changeSet)
	Called when some model observed by dispatcher will be changed.

virtual void	OnComponentCreated () override

Protected Member Functions inherited from icomp::CComponentBase
bool	IsComponentActive () const
	Check if component is active.

virtual void	OnComponentDestroyed ()

virtual const icomp::IRealComponentStaticInfo &	GetComponentStaticInfo () const =0
	Get access to static info of this component.

Protected Member Functions inherited from istd::IChangeable
virtual void	OnBeginChanges ()
	Callback function for begin change event.

virtual void	OnEndChanges (const ChangeSet &changeSet)
	Callback function for end change event.

bool	RegisterModel (IModel *modelPtr, int modelId=0, const istd::IChangeable::ChangeSet &relevantFlags=istd::IChangeable::GetAllChanges())
	Register the data model to be observed.

void	UnregisterModel (int modelId=0)
	Unregister the data model object.

void	UnregisterAllModels ()
	Unregister all observed data objects.

template<class Object >
Object *	GetObjectAt (int modelId) const
	Get concrete object instance of the obsered model.

Additional Inherited Members
Static Public Member Functions inherited from istd::IChangeable
static const ChangeSet &	GetNoChanges ()
	Get empty set of changes.

static const ChangeSet &	GetAnyChange ()
	Get anonymous change set.

static const ChangeSet &	GetAllChanges ()
	Get anonymous change set.

static const ChangeSet &	GetDelegatedChanges ()
	Get delegated change set.

Static Protected Member Functions inherited from icomp::CComponentBase
static const icomp::IRealComponentStaticInfo &	InitStaticInfo (IComponent *componentPtr)

static QByteArray	GetComponentId (const icomp::IComponentContext *componentContextPtr, const QByteArray &contextId=QByteArray())

Detailed Description

Component for binding of multiple command providers.

Definition at line 22 of file CCommandsBinderComp.h.

Member Typedef Documentation

◆ BaseClass

typedef icomp::CComponentBase iqtgui::CCommandsBinderComp::BaseClass

Definition at line 28 of file CCommandsBinderComp.h.

Constructor & Destructor Documentation

◆ CCommandsBinderComp()

iqtgui::CCommandsBinderComp::CCommandsBinderComp ( )

Member Function Documentation

◆ GetCommands()

virtual const ibase::IHierarchicalCommand * iqtgui::CCommandsBinderComp::GetCommands ( ) const

overridevirtual

Get list of menu commands.

These commands will be integrated in global menu system, independent from actual selected view. For support of normal pull down menu, depth of this tree structure should be at least 3.

Reimplemented from ibase::ICommandsProvider.
