#include <CUndoManagerCommandsProviderComp.h>

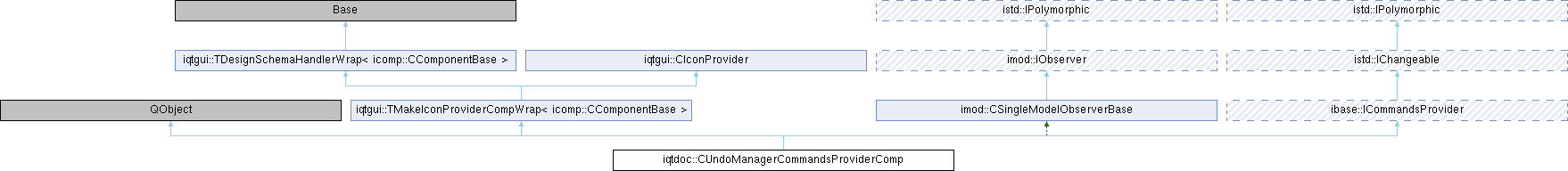

Inheritance diagram for iqtdoc::CUndoManagerCommandsProviderComp:

Public Types
typedef iqtgui::TMakeIconProviderCompWrap< icomp::CComponentBase >	BaseClass

Public Types inherited from iqtgui::TMakeIconProviderCompWrap< icomp::CComponentBase >
typedef icomp::CComponentBase	BaseClass

Public Types inherited from iqtgui::TDesignSchemaHandlerWrap< Base >
typedef Base	BaseClass

Public Types inherited from ibase::ICommandsProvider
enum	ChangeFlags { CF_COMMANDS = 0x62b7e8 }

Public Types inherited from istd::IChangeable
enum	ChangeFlags { CF_ACF_INTERNAL = 0 , CF_ALL_DATA , CF_ANY , CF_DESTROYING , CF_DELEGATED , CF_NO_UNDO }
	Data model change notification flags. More...

enum	SupportedOperations { SO_NONE = 0 , SO_OBSERVE = 1 << 0 , SO_COPY = 1 << 1 , SO_CLONE = 1 << 2 , SO_COMPARE = 1 << 3 , SO_RESET = 1 << 4 }
	Flags for supported operations. More...

enum	CompatibilityMode { CM_STRICT , CM_WITHOUT_REFS , CM_WITH_REFS , CM_CONVERT }
	Control how relationship betweeen objects are interpreted. More...

typedef QMultiMap< QByteArray, QVariant >	ChangeInfoMap

Public Member Functions
	CUndoManagerCommandsProviderComp ()

virtual const ibase::IHierarchicalCommand *	GetCommands () const override
	Get list of menu commands.

Public Member Functions inherited from iqtgui::TMakeIconProviderCompWrap< icomp::CComponentBase >
virtual void	OnDesignSchemaChanged (const QByteArray &themeId) override

Public Member Functions inherited from iqtgui::TDesignSchemaHandlerWrap< Base >
	TDesignSchemaHandlerWrap ()

virtual void	EnableDesignHandler (bool enable=true)
	If enabled, listen to the design schema change events from the application context.

Public Member Functions inherited from iqtgui::CIconProvider
virtual QIcon	GetIcon (const QString &iconName) const

virtual QString	GetIconPath (const QString &iconName) const

virtual QString	GetStyleSheetPath (const QString &styleSheetPath) const

QByteArray	GetCurrentThemeId () const

void	SetThemeId (const QByteArray &themeId)

Public Member Functions inherited from istd::IChangeable
virtual int	GetSupportedOperations () const
	Get set of flags for supported operations.

virtual bool	CopyFrom (const IChangeable &object, CompatibilityMode mode=CM_WITHOUT_REFS)
	Copy this object from another one.

virtual bool	IsEqual (const IChangeable &object) const
	Compare this object with another object.

virtual istd::TUniqueInterfacePtr< istd::IChangeable >	CloneMe (CompatibilityMode mode=CM_WITHOUT_REFS) const
	Make a copy of this object.

virtual bool	ResetData (CompatibilityMode mode=CM_WITHOUT_REFS)
	Reset data to its default state.

virtual void	BeginChanges (const ChangeSet &changeSet)
	Starts the change transaction.

virtual void	EndChanges (const ChangeSet &changeSet)
	Ends the change transaction.

virtual void	BeginChangeGroup (const ChangeSet &changeSet)
	Starts group of changes.

virtual void	EndChangeGroup (const ChangeSet &changeSet)
	Ends group of changes.

Public Member Functions inherited from istd::IPolymorphic
virtual	~IPolymorphic ()

Protected Member Functions
virtual void	OnUpdate (const istd::IChangeable::ChangeSet &changeSet) override
	Called on update of observed model.

virtual void	OnComponentCreated () override

virtual void	OnComponentDestroyed () override

Protected Member Functions inherited from iqtgui::CIconProvider
virtual QIcon	CreateIcon (const QString &iconName) const

Protected Member Functions inherited from imod::CSingleModelObserverBase
void	SetModelPtr (imod::IModel *modelPtr)
	Set internal model pointer to specified value.

	CSingleModelObserverBase ()

virtual	~CSingleModelObserverBase ()

imod::IModel *	GetObservedModel () const
	Get access to observed model.

imod::IModel *	GetModelPtr () const
	Get access to observed model.

void	EnsureModelDetached ()
	Make sure this observer is detached.

void	SetObservedIds (const istd::IChangeable::ChangeSet &changeMask)
	Set list of ID's beeing observed.

virtual bool	IsModelAttached (const imod::IModel *modelPtr=NULL) const override
	Checks if the specified model is currently attached to this observer.

virtual bool	OnModelAttached (imod::IModel *modelPtr, istd::IChangeable::ChangeSet &changeMask) override
	Callback invoked when an observable model is about to be attached to this observer.

virtual bool	OnModelDetached (imod::IModel *modelPtr) override
	Callback invoked when an observable model is about to be detached from this observer.

virtual void	BeforeUpdate (imod::IModel *modelPtr) override
	Callback invoked before an update of the observer's content occurs.

virtual void	AfterUpdate (imod::IModel *modelPtr, const istd::IChangeable::ChangeSet &changeSet) override
	Callback invoked after an update of the observer's content occurs.

Protected Member Functions inherited from istd::IPolymorphic
virtual	~IPolymorphic ()

Protected Member Functions inherited from istd::IChangeable
virtual void	OnBeginChanges ()
	Callback function for begin change event.

virtual void	OnEndChanges (const ChangeSet &changeSet)
	Callback function for end change event.

virtual int	GetSupportedOperations () const
	Get set of flags for supported operations.

virtual bool	CopyFrom (const IChangeable &object, CompatibilityMode mode=CM_WITHOUT_REFS)
	Copy this object from another one.

virtual bool	IsEqual (const IChangeable &object) const
	Compare this object with another object.

virtual istd::TUniqueInterfacePtr< istd::IChangeable >	CloneMe (CompatibilityMode mode=CM_WITHOUT_REFS) const
	Make a copy of this object.

virtual bool	ResetData (CompatibilityMode mode=CM_WITHOUT_REFS)
	Reset data to its default state.

virtual void	BeginChanges (const ChangeSet &changeSet)
	Starts the change transaction.

virtual void	EndChanges (const ChangeSet &changeSet)
	Ends the change transaction.

virtual void	BeginChangeGroup (const ChangeSet &changeSet)
	Starts group of changes.

virtual void	EndChangeGroup (const ChangeSet &changeSet)
	Ends group of changes.

Additional Inherited Members
Static Public Member Functions inherited from istd::IChangeable
static const ChangeSet &	GetNoChanges ()
	Get empty set of changes.

static const ChangeSet &	GetAnyChange ()
	Get anonymous change set.

static const ChangeSet &	GetAllChanges ()
	Get anonymous change set.

static const ChangeSet &	GetDelegatedChanges ()
	Get delegated change set.

Protected Types inherited from imod::CSingleModelObserverBase
typedef imod::IModel	ModelType

Protected Types inherited from ibase::ICommandsProvider
enum	ChangeFlags { CF_COMMANDS = 0x62b7e8 }

Protected Types inherited from istd::IChangeable
enum	ChangeFlags { CF_ACF_INTERNAL = 0 , CF_ALL_DATA , CF_ANY , CF_DESTROYING , CF_DELEGATED , CF_NO_UNDO }
	Data model change notification flags. More...

enum	SupportedOperations { SO_NONE = 0 , SO_OBSERVE = 1 << 0 , SO_COPY = 1 << 1 , SO_CLONE = 1 << 2 , SO_COMPARE = 1 << 3 , SO_RESET = 1 << 4 }
	Flags for supported operations. More...

enum	CompatibilityMode { CM_STRICT , CM_WITHOUT_REFS , CM_WITH_REFS , CM_CONVERT }
	Control how relationship betweeen objects are interpreted. More...

typedef QMultiMap< QByteArray, QVariant >	ChangeInfoMap

Static Protected Member Functions inherited from istd::IChangeable
static const ChangeSet &	GetNoChanges ()
	Get empty set of changes.

static const ChangeSet &	GetAnyChange ()
	Get anonymous change set.

static const ChangeSet &	GetAllChanges ()
	Get anonymous change set.

static const ChangeSet &	GetDelegatedChanges ()
	Get delegated change set.

Static Protected Attributes inherited from imod::CSingleModelObserverBase
static const istd::IChangeable::ChangeSet	s_undoChanges

Detailed Description

Definition at line 23 of file CUndoManagerCommandsProviderComp.h.

Member Typedef Documentation

◆ BaseClass

typedef iqtgui::TMakeIconProviderCompWrap<icomp::CComponentBase> iqtdoc::CUndoManagerCommandsProviderComp::BaseClass

Definition at line 32 of file CUndoManagerCommandsProviderComp.h.

Constructor & Destructor Documentation

◆ CUndoManagerCommandsProviderComp()

iqtdoc::CUndoManagerCommandsProviderComp::CUndoManagerCommandsProviderComp ( )

Member Function Documentation

◆ GetCommands()

virtual const ibase::IHierarchicalCommand * iqtdoc::CUndoManagerCommandsProviderComp::GetCommands ( ) const

overridevirtual

Get list of menu commands.

These commands will be integrated in global menu system, independent from actual selected view. For support of normal pull down menu, depth of this tree structure should be at least 3.

Reimplemented from ibase::ICommandsProvider.

◆ OnComponentCreated()

virtual void iqtdoc::CUndoManagerCommandsProviderComp::OnComponentCreated ( )

overrideprotectedvirtual

◆ OnComponentDestroyed()

virtual void iqtdoc::CUndoManagerCommandsProviderComp::OnComponentDestroyed ( )

overrideprotectedvirtual

◆ OnUpdate()

virtual void iqtdoc::CUndoManagerCommandsProviderComp::OnUpdate ( const istd::IChangeable::ChangeSet & changeSet )

overrideprotectedvirtual

Called on update of observed model.

This method is designed to be overload by derrived classes.

Reimplemented from imod::CSingleModelObserverBase.

The documentation for this class was generated from the following file:

Acf/Include/iqtdoc/CUndoManagerCommandsProviderComp.h
