Provider of state information for a parameter inside a parameter set. More...

#include <IParameterStateProvider.h>

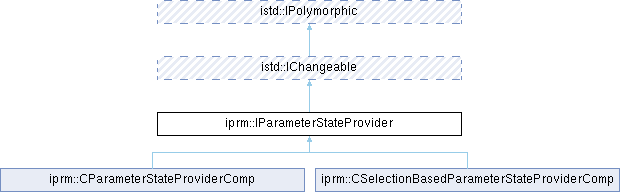

Inheritance diagram for iprm::IParameterStateProvider:

Public Types
enum	StateType { ST_EDIT }
	Type of state to query. More...

enum	ParameterState { PS_UNKNOWN , PS_ON , PS_OFF }
	Possible parameter states. More...

Public Types inherited from istd::IChangeable
enum	ChangeFlags { CF_ACF_INTERNAL = 0 , CF_ALL_DATA , CF_ANY , CF_DESTROYING , CF_DELEGATED , CF_NO_UNDO }
	Data model change notification flags. More...

enum	SupportedOperations { SO_NONE = 0 , SO_OBSERVE = 1 << 0 , SO_COPY = 1 << 1 , SO_CLONE = 1 << 2 , SO_COMPARE = 1 << 3 , SO_RESET = 1 << 4 }
	Flags for supported operations. More...

enum	CompatibilityMode { CM_STRICT , CM_WITHOUT_REFS , CM_WITH_REFS , CM_CONVERT }
	Control how relationship betweeen objects are interpreted. More...

typedef QMultiMap< QByteArray, QVariant >	ChangeInfoMap

Public Member Functions
virtual ParameterState	GetState (const iprm::IParamsSet &paramSet, const QByteArray &parameterId, StateType stateType) const =0
	Return state for the given parameter.

Public Member Functions inherited from istd::IChangeable
virtual int	GetSupportedOperations () const
	Get set of flags for supported operations.

virtual bool	CopyFrom (const IChangeable &object, CompatibilityMode mode=CM_WITHOUT_REFS)
	Copy this object from another one.

virtual bool	IsEqual (const IChangeable &object) const
	Compare this object with another object.

virtual istd::TUniqueInterfacePtr< istd::IChangeable >	CloneMe (CompatibilityMode mode=CM_WITHOUT_REFS) const
	Make a copy of this object.

virtual bool	ResetData (CompatibilityMode mode=CM_WITHOUT_REFS)
	Reset data to its default state.

virtual void	BeginChanges (const ChangeSet &changeSet)
	Starts the change transaction.

virtual void	EndChanges (const ChangeSet &changeSet)
	Ends the change transaction.

virtual void	BeginChangeGroup (const ChangeSet &changeSet)
	Starts group of changes.

virtual void	EndChangeGroup (const ChangeSet &changeSet)
	Ends group of changes.

Public Member Functions inherited from istd::IPolymorphic
virtual	~IPolymorphic ()

Additional Inherited Members
Static Public Member Functions inherited from istd::IChangeable
static const ChangeSet &	GetNoChanges ()
	Get empty set of changes.

static const ChangeSet &	GetAnyChange ()
	Get anonymous change set.

static const ChangeSet &	GetAllChanges ()
	Get anonymous change set.

static const ChangeSet &	GetDelegatedChanges ()
	Get delegated change set.

Protected Member Functions inherited from istd::IChangeable
virtual void	OnBeginChanges ()
	Callback function for begin change event.

virtual void	OnEndChanges (const ChangeSet &changeSet)
	Callback function for end change event.

Detailed Description

Provider of state information for a parameter inside a parameter set.

IParameterStateProvider determines the state (such as editability) of parameters within a parameter set based on application logic or context. This enables dynamic control over which parameters are editable in different scenarios.

This interface is commonly used to:

Enable/disable parameter editing based on application state
Implement conditional parameter visibility or editability
Provide context-sensitive parameter behavior

Usage Example

// Assuming stateProvider is obtained from a component
iprm::IParameterStateProvider* stateProvider;

// Assuming paramsSet is obtained
iprm::IParamsSet* paramsSet;

// Check if a parameter is editable
QByteArray paramId = "threshold";
iprm::IParameterStateProvider::ParameterState editState =
       stateProvider->GetState(
               *paramsSet,
              paramId,
              iprm::IParameterStateProvider::ST_EDIT);

switch (editState)
{
       case iprm::IParameterStateProvider::PS_ON:
              qDebug() << "Parameter is editable";
              // Allow user to edit
              break;

       case iprm::IParameterStateProvider::PS_OFF:
              qDebug() << "Parameter is read-only";
              // Disable editing UI
              break;

       case iprm::IParameterStateProvider::PS_UNKNOWN:
              qDebug() << "State not determined by provider";
              // Use default behavior
              break;
}

Checking Multiple Parameters

iprm::IParamsSet::Ids paramIds = paramsSet->GetParamIds();

for (const QByteArray& id : paramIds)
{
       auto state = stateProvider->GetState(
               *paramsSet, id, iprm::IParameterStateProvider::ST_EDIT);

       if (state == iprm::IParameterStateProvider::PS_ON)
       {
              qDebug() << "Parameter" << id << "is editable";
       }
}

Note: Inherits from istd::IChangeable for change notification support.; State providers enable separation of UI logic from data model.

See also: IParamsSet

Definition at line 91 of file IParameterStateProvider.h.

Member Enumeration Documentation

◆ ParameterState

enum iprm::IParameterStateProvider::ParameterState

Possible parameter states.

States that a parameter can be in for a given state type.

Enumerator
PS_UNKNOWN	State is not determined by this provider.
PS_ON	State is active (e.g., parameter is editable)
PS_OFF	State is inactive (e.g., parameter is read-only)

Definition at line 113 of file IParameterStateProvider.h.

◆ StateType

enum iprm::IParameterStateProvider::StateType

Type of state to query.

Different state types can be checked for parameters.

Enumerator

ST_EDIT

Get the "edit" status of the parameter.

Determines whether the parameter can be modified.

Definition at line 99 of file IParameterStateProvider.h.

Member Function Documentation

◆ GetState()

virtual ParameterState iprm::IParameterStateProvider::GetState	(	const iprm::IParamsSet &	paramSet,
		const QByteArray &	parameterId,
		StateType	stateType
	)		const

pure virtual

Return state for the given parameter.

Queries the state of a specific parameter within a parameter set.

Parameters

paramSet	The parameter set containing the parameter.
parameterId	ID of the parameter to check.
stateType	Type of state to query (e.g., ST_EDIT).

Returns: The state of the parameter: PS_ON, PS_OFF, or PS_UNKNOWN.

Note: PS_UNKNOWN indicates this provider doesn't determine the state, allowing other providers or default behavior to apply.

// Check if parameter can be edited
auto editState = stateProvider->GetState(
        *paramsSet,
       "paramId",
       iprm::IParameterStateProvider::ST_EDIT);

bool canEdit = (editState == iprm::IParameterStateProvider::PS_ON);

See also: StateType, ParameterState

Implemented in iprm::CParameterStateProviderComp, and iprm::CSelectionBasedParameterStateProviderComp.

The documentation for this class was generated from the following file:

Acf/Include/iprm/IParameterStateProvider.h
