Implementation of selection constraints. More...

#include <CSelectionConstraintsComp.h>

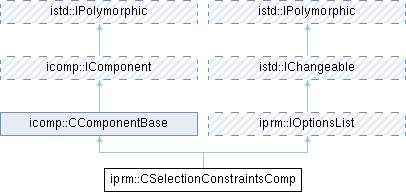

Inheritance diagram for iprm::CSelectionConstraintsComp:

Public Types
typedef icomp::CComponentBase	BaseClass

Public Types inherited from iprm::IOptionsList
enum	ChangeFlags { CF_OPTIONS_CHANGED = 0x8263d86 , CF_OPTION_RENAMED }
	Flags for changes related to this interface. More...

enum	OptionsFlags { SCF_NONE = 0 , SCF_SUPPORT_UNIQUE_ID = 256 , SFC_DISABLE_ALLOWED = 32 }
	Flags for controlling constraints behavior. More...

Public Types inherited from istd::IChangeable
enum	ChangeFlags { CF_ACF_INTERNAL = 0 , CF_ALL_DATA , CF_ANY , CF_DESTROYING , CF_DELEGATED , CF_NO_UNDO }
	Data model change notification flags. More...

enum	SupportedOperations { SO_NONE = 0 , SO_OBSERVE = 1 << 0 , SO_COPY = 1 << 1 , SO_CLONE = 1 << 2 , SO_COMPARE = 1 << 3 , SO_RESET = 1 << 4 }
	Flags for supported operations. More...

enum	CompatibilityMode { CM_STRICT , CM_WITHOUT_REFS , CM_WITH_REFS , CM_CONVERT }
	Control how relationship betweeen objects are interpreted. More...

typedef QMultiMap< QByteArray, QVariant >	ChangeInfoMap

Public Member Functions
virtual int	GetOptionsFlags () const override
	Get constraints flags.

virtual int	GetOptionsCount () const override
	Get number of managed options.

virtual QString	GetOptionName (int index) const override
	Get name of specified option.

virtual QString	GetOptionDescription (int index) const override
	Get human-readable description for an option.

virtual QByteArray	GetOptionId (int index) const override
	Get option ID.

virtual bool	IsOptionEnabled (int index) const override
	Return true if the option is enabled and can be selected.

Public Member Functions inherited from icomp::CComponentBase
	CComponentBase ()
	Create component and assign it to specific context.

virtual const icomp::IComponent *	GetParentComponent (bool ownerOnly=false) const override
	Get parent of this component.

virtual void *	GetInterface (const istd::CClassInfo &interfaceType, const QByteArray &subId="") override
	Get access to specified component interface.

virtual IComponentContextSharedPtr	GetComponentContext () const override
	Get access to component context describing all application-specified component information loaded from components registry.

virtual void	SetComponentContext (const IComponentContextSharedPtr &contextPtr, const icomp::IComponent *parentPtr, bool isParentOwner) override
	Set component context of this component.

Public Member Functions inherited from istd::IPolymorphic
virtual	~IPolymorphic ()

Public Member Functions inherited from istd::IChangeable
virtual int	GetSupportedOperations () const
	Get set of flags for supported operations.

virtual bool	CopyFrom (const IChangeable &object, CompatibilityMode mode=CM_WITHOUT_REFS)
	Copy this object from another one.

virtual bool	IsEqual (const IChangeable &object) const
	Compare this object with another object.

virtual istd::TUniqueInterfacePtr< istd::IChangeable >	CloneMe (CompatibilityMode mode=CM_WITHOUT_REFS) const
	Make a copy of this object.

virtual bool	ResetData (CompatibilityMode mode=CM_WITHOUT_REFS)
	Reset data to its default state.

virtual void	BeginChanges (const ChangeSet &changeSet)
	Starts the change transaction.

virtual void	EndChanges (const ChangeSet &changeSet)
	Ends the change transaction.

virtual void	BeginChangeGroup (const ChangeSet &changeSet)
	Starts group of changes.

virtual void	EndChangeGroup (const ChangeSet &changeSet)
	Ends group of changes.

Additional Inherited Members
Static Public Member Functions inherited from istd::IChangeable
static const ChangeSet &	GetNoChanges ()
	Get empty set of changes.

static const ChangeSet &	GetAnyChange ()
	Get anonymous change set.

static const ChangeSet &	GetAllChanges ()
	Get anonymous change set.

static const ChangeSet &	GetDelegatedChanges ()
	Get delegated change set.

Protected Member Functions inherited from icomp::CComponentBase
bool	IsComponentActive () const
	Check if component is active.

virtual void	OnComponentCreated ()

virtual void	OnComponentDestroyed ()

virtual const icomp::IRealComponentStaticInfo &	GetComponentStaticInfo () const =0
	Get access to static info of this component.

Protected Member Functions inherited from istd::IChangeable
virtual void	OnBeginChanges ()
	Callback function for begin change event.

virtual void	OnEndChanges (const ChangeSet &changeSet)
	Callback function for end change event.

Static Protected Member Functions inherited from icomp::CComponentBase
static const icomp::IRealComponentStaticInfo &	InitStaticInfo (IComponent *componentPtr)

static QByteArray	GetComponentId (const icomp::IComponentContext *componentContextPtr, const QByteArray &contextId=QByteArray())

Detailed Description

Implementation of selection constraints.

Definition at line 19 of file CSelectionConstraintsComp.h.

Member Typedef Documentation

◆ BaseClass

typedef icomp::CComponentBase iprm::CSelectionConstraintsComp::BaseClass

Definition at line 24 of file CSelectionConstraintsComp.h.

Member Function Documentation

◆ GetOptionDescription()

virtual QString iprm::CSelectionConstraintsComp::GetOptionDescription ( int index ) const

overridevirtual

Get human-readable description for an option.

Returns detailed description or tooltip text for an option.

Parameters

index Option index (0-based).

Returns: Option description as QString, or empty string if no description exists or index is out of range.

QString description = options->GetOptionDescription(2);
if (!description.isEmpty())
{
    qDebug() << "Description:" << description;
}

See also: GetOptionName

Implements iprm::IOptionsList.

◆ GetOptionId()

virtual QByteArray iprm::CSelectionConstraintsComp::GetOptionId ( int index ) const

overridevirtual

Get option ID.

Returns the unique identifier for an option. The ID is stable and doesn't change when options are reordered, making it suitable for persistent references.

Parameters

index Option index (0-based).

Returns: Option ID as QByteArray, or empty array if index is out of range.

Note: The ID must be unique if SCF_SUPPORT_UNIQUE_ID flag is set.; Use FindOptionIndexById() to find an option by its ID.

QByteArray id = options->GetOptionId(1);
qDebug() << "Option ID:" << id;

// Later, find the option by ID
int index = iprm::FindOptionIndexById(id, *options);

See also: OptionsFlags, FindOptionIndexById

Implements iprm::IOptionsList.

◆ GetOptionName()

virtual QString iprm::CSelectionConstraintsComp::GetOptionName ( int index ) const

overridevirtual

Get name of specified option.

Returns the display name for an option.

Parameters

index Option index (0-based).

Returns: Option name as QString, or empty string if index is out of range.

QString name = options->GetOptionName(0);

qDebug() << "First option:" << name;

See also: GetOptionDescription, GetOptionId

Implements iprm::IOptionsList.

◆ GetOptionsCount()

virtual int iprm::CSelectionConstraintsComp::GetOptionsCount ( ) const

overridevirtual

Get number of managed options.

Returns: Total count of options in the list (including disabled options).

int count = options->GetOptionsCount();
for (int i = 0; i < count; ++i)
{
    // Process each option
}

See also: GetOptionName

Implements iprm::IOptionsList.

◆ GetOptionsFlags()

virtual int iprm::CSelectionConstraintsComp::GetOptionsFlags ( ) const

overridevirtual

Get constraints flags.

Returns flags that describe how the constraints object behaves and what features it supports.

Returns: Bitwise OR combination of OptionsFlags values.

int flags = options->GetOptionsFlags();

if (flags & iprm::IOptionsList::SCF_SUPPORT_UNIQUE_ID)
{
    qDebug() << "Options have unique IDs";
}

if (flags & iprm::IOptionsList::SFC_DISABLE_ALLOWED)
{
    qDebug() << "Options can be disabled";
}

See also: OptionsFlags

Implements iprm::IOptionsList.

◆ IsOptionEnabled()

virtual bool iprm::CSelectionConstraintsComp::IsOptionEnabled ( int index ) const

overridevirtual

Return true if the option is enabled and can be selected.

Checks whether an option is currently enabled. Disabled options cannot be selected but remain visible in the list.

Parameters

index Option index (0-based).

Returns: true if option is enabled and can be selected, false if disabled or index is out of range.

for (int i = 0; i < options->GetOptionsCount(); ++i)
{
    if (options->IsOptionEnabled(i))
    {
        QString name = options->GetOptionName(i);
        qDebug() << "Enabled option:" << name;
    }
}

See also: SFC_DISABLE_ALLOWED

Implements iprm::IOptionsList.

The documentation for this class was generated from the following file:

Acf/Include/iprm/CSelectionConstraintsComp.h
