Keep parameter set with selected one synchronized. More...

#include <CManagerParamsSetShadowerComp.h>

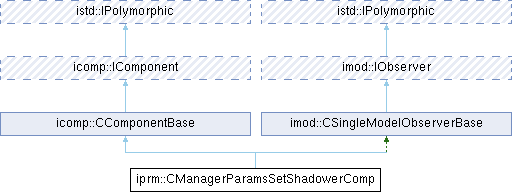

Inheritance diagram for iprm::CManagerParamsSetShadowerComp:

Public Types
typedef icomp::CComponentBase	BaseClass

Public Member Functions
	CManagerParamsSetShadowerComp ()

Public Member Functions inherited from icomp::CComponentBase
	CComponentBase ()
	Create component and assign it to specific context.

virtual const icomp::IComponent *	GetParentComponent (bool ownerOnly=false) const override
	Get parent of this component.

virtual void *	GetInterface (const istd::CClassInfo &interfaceType, const QByteArray &subId="") override
	Get access to specified component interface.

virtual IComponentContextSharedPtr	GetComponentContext () const override
	Get access to component context describing all application-specified component information loaded from components registry.

virtual void	SetComponentContext (const IComponentContextSharedPtr &contextPtr, const icomp::IComponent *parentPtr, bool isParentOwner) override
	Set component context of this component.

Public Member Functions inherited from istd::IPolymorphic
virtual	~IPolymorphic ()

Protected Member Functions
bool	CopyParamsSetToShadow ()
	Do copy current selected parameter set to shadow object.

void	SetupCurrentParamsSetBridge ()
	Set the bridge to the currently selected parameter set.

virtual void	OnComponentCreated () override

virtual void	OnComponentDestroyed () override

virtual void	OnUpdate (const istd::IChangeable::ChangeSet &changeSet) override
	Called on update of observed model.

Protected Member Functions inherited from icomp::CComponentBase
bool	IsComponentActive () const
	Check if component is active.

virtual const icomp::IRealComponentStaticInfo &	GetComponentStaticInfo () const =0
	Get access to static info of this component.

Protected Member Functions inherited from imod::CSingleModelObserverBase
void	SetModelPtr (imod::IModel *modelPtr)
	Set internal model pointer to specified value.

	CSingleModelObserverBase ()

virtual	~CSingleModelObserverBase ()

imod::IModel *	GetObservedModel () const
	Get access to observed model.

imod::IModel *	GetModelPtr () const
	Get access to observed model.

void	EnsureModelDetached ()
	Make sure this observer is detached.

void	SetObservedIds (const istd::IChangeable::ChangeSet &changeMask)
	Set list of ID's beeing observed.

virtual bool	IsModelAttached (const imod::IModel *modelPtr=NULL) const override
	Checks if the specified model is currently attached to this observer.

virtual bool	OnModelAttached (imod::IModel *modelPtr, istd::IChangeable::ChangeSet &changeMask) override
	Callback invoked when an observable model is about to be attached to this observer.

virtual bool	OnModelDetached (imod::IModel *modelPtr) override
	Callback invoked when an observable model is about to be detached from this observer.

virtual void	BeforeUpdate (imod::IModel *modelPtr) override
	Callback invoked before an update of the observer's content occurs.

virtual void	AfterUpdate (imod::IModel *modelPtr, const istd::IChangeable::ChangeSet &changeSet) override
	Callback invoked after an update of the observer's content occurs.

Additional Inherited Members
Protected Types inherited from imod::CSingleModelObserverBase
typedef imod::IModel	ModelType

Static Protected Member Functions inherited from icomp::CComponentBase
static const icomp::IRealComponentStaticInfo &	InitStaticInfo (IComponent *componentPtr)

static QByteArray	GetComponentId (const icomp::IComponentContext *componentContextPtr, const QByteArray &contextId=QByteArray())

Static Protected Attributes inherited from imod::CSingleModelObserverBase
static const istd::IChangeable::ChangeSet	s_undoChanges

Detailed Description

Keep parameter set with selected one synchronized.

Definition at line 22 of file CManagerParamsSetShadowerComp.h.

Member Typedef Documentation

◆ BaseClass

typedef icomp::CComponentBase iprm::CManagerParamsSetShadowerComp::BaseClass

Definition at line 27 of file CManagerParamsSetShadowerComp.h.

Constructor & Destructor Documentation

◆ CManagerParamsSetShadowerComp()

iprm::CManagerParamsSetShadowerComp::CManagerParamsSetShadowerComp ( )

Member Function Documentation

◆ CopyParamsSetToShadow()

bool iprm::CManagerParamsSetShadowerComp::CopyParamsSetToShadow ( )

protected

Do copy current selected parameter set to shadow object.

◆ OnComponentCreated()

virtual void iprm::CManagerParamsSetShadowerComp::OnComponentCreated ( )

overrideprotectedvirtual

Reimplemented from icomp::CComponentBase.

◆ OnComponentDestroyed()

virtual void iprm::CManagerParamsSetShadowerComp::OnComponentDestroyed ( )

overrideprotectedvirtual

Reimplemented from icomp::CComponentBase.

◆ OnUpdate()

virtual void iprm::CManagerParamsSetShadowerComp::OnUpdate ( const istd::IChangeable::ChangeSet & changeSet )

overrideprotectedvirtual

Called on update of observed model.

This method is designed to be overload by derrived classes.

Reimplemented from imod::CSingleModelObserverBase.

◆ SetupCurrentParamsSetBridge()

void iprm::CManagerParamsSetShadowerComp::SetupCurrentParamsSetBridge ( )

protected

Set the bridge to the currently selected parameter set.

Over this mechanism the changes in the slave parameter set will be reflected by this object.

See also: CurrentParamsSetObserver

The documentation for this class was generated from the following file:

Acf/Include/iprm/CManagerParamsSetShadowerComp.h
