imod::TMultiModelObserverBase< ModelInterface > Class Template Reference

Basic implementation of a multiple model observer. More...

#include <TMultiModelObserverBase.h>

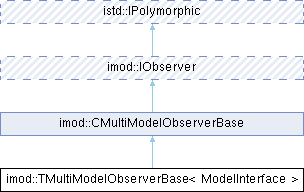

Inheritance diagram for imod::TMultiModelObserverBase< ModelInterface >:

Public Types
typedef CMultiModelObserverBase	BaseClass
typedef ModelInterface	ModelType

Public Member Functions
ModelInterface *	GetObservedObject (int objectIndex) const
	Get instance of observed object.
ModelInterface *	GetObjectPtr (int objectIndex) const
	Get instance of observed object.
virtual bool	OnModelAttached (imod::IModel *modelPtr, istd::IChangeable::ChangeSet &changeMask) override
	Callback invoked when an observable model is about to be attached to this observer.
Public Member Functions inherited from imod::CMultiModelObserverBase
	CMultiModelObserverBase ()
virtual	~CMultiModelObserverBase ()
int	GetModelCount () const
	Gets the number of connected models.
IModel *	GetObservedModel (int modelIndex) const
	Get access to connected model with the index index.
IModel *	GetModelPtr (int modelIndex) const
	Get access to connected model with the index index.
void	EnsureModelsDetached ()
	Ensure all attached models are detached.
void	SetObservedIds (const istd::IChangeable::ChangeSet &changeMask)
	Set list of ID's beeing observed.
virtual bool	IsModelAttached (const IModel *modelPtr) const override
	Checks if the specified model is currently attached to this observer.
virtual bool	OnModelDetached (IModel *modelPtr) override
	Callback invoked when an observable model is about to be detached from this observer.
virtual void	BeforeUpdate (IModel *modelPtr) override
	Callback invoked before an update of the observer's content occurs.
virtual void	AfterUpdate (IModel *modelPtr, const istd::IChangeable::ChangeSet &changeSet) override
	Callback invoked after an update of the observer's content occurs.
Public Member Functions inherited from istd::IPolymorphic
virtual	~IPolymorphic ()

Additional Inherited Members
Protected Member Functions inherited from imod::CMultiModelObserverBase
virtual void	OnUpdate (IModel *modelPtr, const istd::IChangeable::ChangeSet &changeSet)
	Called on update of observed model.

Detailed Description

template<class ModelInterface>
class imod::TMultiModelObserverBase< ModelInterface >

Basic implementation of a multiple model observer.

Definition at line 22 of file TMultiModelObserverBase.h.

Member Typedef Documentation

BaseClass

template<class ModelInterface >

typedef CMultiModelObserverBase imod::TMultiModelObserverBase< ModelInterface >::BaseClass

Definition at line 25 of file TMultiModelObserverBase.h.

ModelType

template<class ModelInterface >

typedef ModelInterface imod::TMultiModelObserverBase< ModelInterface >::ModelType

Definition at line 26 of file TMultiModelObserverBase.h.

Member Function Documentation

GetObjectPtr()

template<class ModelInterface >

ModelInterface * imod::TMultiModelObserverBase< ModelInterface >::GetObjectPtr

(

int

objectIndex

)

const

Get instance of observed object.

Deprecated:

use GetObservedObject instead.

Definition at line 57 of file TMultiModelObserverBase.h.

GetObservedObject()

template<class ModelInterface >

ModelInterface * imod::TMultiModelObserverBase< ModelInterface >::GetObservedObject

(

int

objectIndex

)

const

Get instance of observed object.

Parameters

objectIndex

index of object

Definition at line 47 of file TMultiModelObserverBase.h.

OnModelAttached()

template<class ModelInterface >

bool imod::TMultiModelObserverBase< ModelInterface >::OnModelAttached ( imod::IModel *  modelPtr, istd::IChangeable::ChangeSet &  changeMask  )

overridevirtual

Callback invoked when an observable model is about to be attached to this observer.

This method is called by the model when attempting to establish an observer relationship. The implementation should:

1. Validate that the model is of an acceptable type
2. Set the changeMask to specify which changes to monitor
3. Return true to accept the attachment, or false to reject it

Parameters

modelPtr	Pointer to the model object being attached. Never nullptr.
changeMask	Output parameter where the observer specifies which change types it wants to be notified about. Set the appropriate change flags using changeMask.Set(changeId). An empty mask means the observer wants all changes.

Returns

true if the model is accepted and attachment succeeds, false to reject the attachment (e.g., if the model is of incompatible type).

Note

After successful attachment, the observer should initialize its state based on the current model data.

The changeMask allows filtering notifications for better performance. Only changes matching the mask will trigger AfterUpdate() calls.

virtual bool OnModelAttached(IModel* modelPtr,
                            istd::IChangeable::ChangeSet& changeMask)
{
       // Type check
       CMyModel* model = dynamic_cast<CMyModel*>(modelPtr);
       if (!model) return false;

       // Set up change filtering
       changeMask.Set(CMyModel::CF_DATA_CHANGED);
       changeMask.Set(CMyModel::CF_STATUS_CHANGED);
       // Don't set CF_INTERNAL_CHANGED - we don't care about those

       // Initialize view from current model state
       UpdateViewFromModel(model);
       return true;
}

See also

OnModelDetached(), IsModelAttached(), AfterUpdate()

Reimplemented from imod::CMultiModelObserverBase.

Definition at line 69 of file TMultiModelObserverBase.h.

References NULL.

---

The documentation for this class was generated from the following file:

• Acf/Include/imod/TMultiModelObserverBase.h
