imath::CComplexDoubleManip Class Reference

#include <CComplexDoubleManip.h>

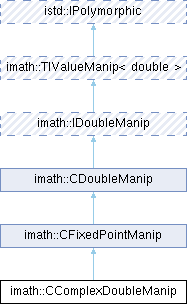

Inheritance diagram for imath::CComplexDoubleManip:

Public Types
typedef CFixedPointManip	BaseClass
Public Types inherited from imath::CFixedPointManip
enum	RoundingType { RT_NORMAL , RT_FLOOR , RT_CEIL , RT_LAST = RT_CEIL + 1 }
typedef CDoubleManip	BaseClass

Public Member Functions
	CComplexDoubleManip (int precision=1, RoundingType roundingType=RT_NORMAL, double scaleFactor=1.0, double offset=0.0, const istd::CRange &range=istd::CRange(-std::numeric_limits< double >::max(), std::numeric_limits< double >::max()))
const istd::CRange &	GetRange () const
void	SetRange (const istd::CRange &range)
double	GetScaleFactor () const
void	SetScaleFactor (double value)
double	GetOffset () const
void	SetOffset (double value)
void	SetPrecision (int precision)
virtual QString	GetString (const double &value) const override
	Get this value as string.
virtual bool	GetParsed (const QString &text, double &result) const override
	Get value converted from string.
Public Member Functions inherited from imath::CFixedPointManip
	CFixedPointManip (int precision=1, RoundingType roundingType=RT_NORMAL)
void	SetPrecision (int precision)
	Set fixed point precision.
RoundingType	GetRoundingType () const
	Get type of rounding.
void	SetRoundingType (RoundingType roundingType)
	Set type of rounding.
virtual int	GetPrecision () const override
	Get number of digits after point.
virtual double	GetRounded (const double &value) const override
	Get the nearest value rounded used this arithmetik.
virtual bool	AreValuesEqual (const double &value1, const double &value2) const override
	Compare two values and check, if there are equal.
virtual bool	IsSmaller (const double &value1, const double &value2) const override
	Compare two values and check, if first one is smaller as the second.
virtual bool	IsSmallerEqual (const double &value1, const double &value2) const override
	Compare two values and check, if first one is smaller or equal as the second.
virtual double	GetSmallerValue (const double &value) const override
	Return biggest value smaller that specified one.
virtual double	GetBiggerValue (const double &value) const override
	Return smallest value bigger that specified one.
Public Member Functions inherited from imath::CDoubleManip
	CDoubleManip ()
char	GetPointChar () const
	Get point character.
void	SetPointChar (char pointChar)
	Set point character.
Public Member Functions inherited from istd::IPolymorphic
virtual	~IPolymorphic ()

Protected Member Functions
virtual qint32	GetInternalValue (double value) const override
Protected Member Functions inherited from imath::CFixedPointManip
virtual double	GetNormalValue (qint32 intValue) const
QString	GetString (const double &value, int precision) const

Additional Inherited Members
Protected Types inherited from imath::CFixedPointManip
typedef int(*	RoundingFuntionPtr) (qreal value)
Protected Types inherited from imath::CDoubleManip
enum	{ PRECISION = 6 }

Detailed Description

Definition at line 18 of file CComplexDoubleManip.h.

Member Typedef Documentation

BaseClass

typedef CFixedPointManip imath::CComplexDoubleManip::BaseClass

Definition at line 21 of file CComplexDoubleManip.h.

Constructor & Destructor Documentation

CComplexDoubleManip()

imath::CComplexDoubleManip::CComplexDoubleManip	(	int	precision = 1,
		RoundingType	roundingType = RT_NORMAL,
		double	scaleFactor = 1.0,
		double	offset = 0.0,
		const istd::CRange &	range = istd::CRange(-std::numeric_limits< double >::max(), std::numeric_limits< double >::max())
	)

Member Function Documentation

GetInternalValue()

virtual qint32 imath::CComplexDoubleManip::GetInternalValue ( double  value ) const

overrideprotectedvirtual

Reimplemented from imath::CFixedPointManip.

GetOffset()

double imath::CComplexDoubleManip::GetOffset ( ) const

inline

Definition at line 87 of file CComplexDoubleManip.h.

GetParsed()

virtual bool imath::CComplexDoubleManip::GetParsed ( const QString &  text, double &  result  ) const

overridevirtual

Get value converted from string.

Parameters

text	input string.
result	result value.

Returns

true if success.

Reimplemented from imath::CFixedPointManip.

GetRange()

const istd::CRange & imath::CComplexDoubleManip::GetRange ( ) const

inline

Definition at line 61 of file CComplexDoubleManip.h.

GetScaleFactor()

double imath::CComplexDoubleManip::GetScaleFactor ( ) const

inline

Definition at line 73 of file CComplexDoubleManip.h.

GetString()

virtual QString imath::CComplexDoubleManip::GetString ( const double &  value ) const

overridevirtual

Get this value as string.

Parameters

value

value will be converted.

Reimplemented from imath::CFixedPointManip.

SetOffset()

void imath::CComplexDoubleManip::SetOffset ( double  value )

inline

Definition at line 93 of file CComplexDoubleManip.h.

SetPrecision()

void imath::CComplexDoubleManip::SetPrecision ( int  precision )

inline

Definition at line 101 of file CComplexDoubleManip.h.

References imath::CFixedPointManip::GetPrecision(), and imath::CFixedPointManip::SetPrecision().

SetRange()

void imath::CComplexDoubleManip::SetRange ( const istd::CRange &  range )

inline

Definition at line 67 of file CComplexDoubleManip.h.

SetScaleFactor()

void imath::CComplexDoubleManip::SetScaleFactor ( double  value )

inline

Definition at line 79 of file CComplexDoubleManip.h.

References imath::CFixedPointManip::GetPrecision().

---

The documentation for this class was generated from the following file:

• Acf/Include/imath/CComplexDoubleManip.h
