ifilegui::CFileSystemExplorerGuiComp Class Reference

UI component for visualization of file system contents. More...

#include <CFileSystemExplorerGuiComp.h>

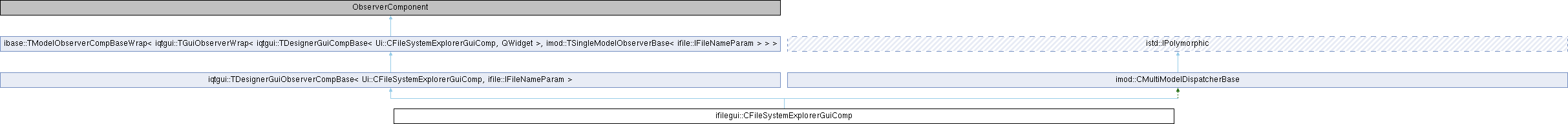

Inheritance diagram for ifilegui::CFileSystemExplorerGuiComp:

Public Types
typedef iqtgui::TDesignerGuiObserverCompBase< Ui::CFileSystemExplorerGuiComp, ifile::IFileNameParam >	BaseClass
Public Types inherited from ibase::TModelObserverCompBaseWrap< ObserverComponent >
typedef ObserverComponent	BaseClass

Public Member Functions
	CFileSystemExplorerGuiComp ()

Protected Member Functions
QStringList	GetDefaultFilters () const
	Get default list of filters.
void	InvalidateFileSystemModel (const QString &currentFilePath)
void	UpdateFileRoot ()
virtual void	UpdateGui (const istd::IChangeable::ChangeSet &changeSet) override
virtual void	OnGuiCreated () override
virtual void	OnModelChanged (int modelId, const istd::IChangeable::ChangeSet &changeSet) override
	Called when some model observed by dispatcher will be changed.
Protected Member Functions inherited from ibase::TModelObserverCompBaseWrap< ObserverComponent >
virtual void	OnComponentCreated () override
virtual void	OnComponentDestroyed () override
bool	RegisterModel (IModel *modelPtr, int modelId=0, const istd::IChangeable::ChangeSet &relevantFlags=istd::IChangeable::GetAllChanges())
	Register the data model to be observed.
void	UnregisterModel (int modelId=0)
	Unregister the data model object.
void	UnregisterAllModels ()
	Unregister all observed data objects.
template<class Object >
Object *	GetObjectAt (int modelId) const
	Get concrete object instance of the obsered model.
Protected Member Functions inherited from istd::IPolymorphic
virtual	~IPolymorphic ()

Detailed Description

UI component for visualization of file system contents.

CFileSystemExplorerGuiComp is implemented as an observer of IFileNameParam. Connected to model, this component will show the file system item, provided by the data model. Model data will be changed, if the user selects a supported file item in the file system view.

Definition at line 44 of file CFileSystemExplorerGuiComp.h.

Member Typedef Documentation

BaseClass

typedef iqtgui::TDesignerGuiObserverCompBase< Ui::CFileSystemExplorerGuiComp, ifile::IFileNameParam> ifilegui::CFileSystemExplorerGuiComp::BaseClass

Definition at line 51 of file CFileSystemExplorerGuiComp.h.

Constructor & Destructor Documentation

CFileSystemExplorerGuiComp()

ifilegui::CFileSystemExplorerGuiComp::CFileSystemExplorerGuiComp

(

)

Member Function Documentation

GetDefaultFilters()

QStringList ifilegui::CFileSystemExplorerGuiComp::GetDefaultFilters ( ) const

protected

Get default list of filters.

This list will be created using component parameters.

InvalidateFileSystemModel()

void ifilegui::CFileSystemExplorerGuiComp::InvalidateFileSystemModel ( const QString &  currentFilePath )

protected

OnGuiCreated()

virtual void ifilegui::CFileSystemExplorerGuiComp::OnGuiCreated ( )

overrideprotectedvirtual

OnModelChanged()

virtual void ifilegui::CFileSystemExplorerGuiComp::OnModelChanged ( int  modelId, const istd::IChangeable::ChangeSet &  changeSet  )

overrideprotectedvirtual

Called when some model observed by dispatcher will be changed.

Implements imod::CMultiModelDispatcherBase.

UpdateFileRoot()

void ifilegui::CFileSystemExplorerGuiComp::UpdateFileRoot ( )

protected

UpdateGui()

virtual void ifilegui::CFileSystemExplorerGuiComp::UpdateGui ( const istd::IChangeable::ChangeSet &  changeSet )

overrideprotectedvirtual

---

The documentation for this class was generated from the following file:

• Acf/Include/ifilegui/CFileSystemExplorerGuiComp.h
