icomp::TReferenceMember< Interface > Class Template Reference

Pointer to referenced component object. More...

#include <TReferenceMember.h>

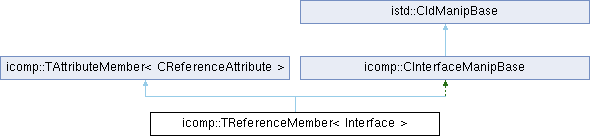

Inheritance diagram for icomp::TReferenceMember< Interface >:

Public Types
typedef TAttributeMember< CReferenceAttribute >	BaseClass
typedef CInterfaceManipBase	BaseClass2
typedef Interface	InterfaceType
Public Types inherited from icomp::TAttributeMember< CReferenceAttribute >
typedef CReferenceAttribute	AttributeType
typedef Attribute::ValueType	AttributeValueType
typedef void	InterfaceType

Public Member Functions
	TReferenceMember ()
void	Init (const IComponent *ownerPtr, const IRealAttributeStaticInfo &staticInfo)
bool	IsValid () const
	Check if this reference can be resolved.
bool	EnsureInitialized () const
	Ensure that initlization process is closed.
Interface *	GetPtr () const
	Direct cccess to internal pointer.
Interface *	operator-> () const
	Access to internal pointer.
Public Member Functions inherited from icomp::TAttributeMember< CReferenceAttribute >
	TAttributeMember ()
void	Init (const IComponent *ownerPtr, const IRealAttributeStaticInfo &staticInfo)
	Initialize this attribute.
bool	IsValid () const
	Check if this attribute is valid.
const CReferenceAttribute *	GetAttributePtr () const
	Access to internal attribute pointer.
const AttributeValueType &	GetOriginalValue () const
	Get value of attribute.
const CReferenceAttribute *	operator-> () const
	Access to internal attribute pointer.
const AttributeValueType &	operator* () const
	Get value of attribute.

Protected Member Functions
	TReferenceMember (const TReferenceMember &ptr)
Protected Member Functions inherited from icomp::TAttributeMember< CReferenceAttribute >
void	SetAttribute (const CReferenceAttribute *attributePtr)
bool	InitInternal (const IComponent *ownerPtr, const IRealAttributeStaticInfo &staticInfo, const IComponent **definitionComponentPtr)
	Internal initialize of attribute.

Additional Inherited Members
Static Protected Member Functions inherited from icomp::CInterfaceManipBase
template<class Interface >
static Interface *	ExtractInterface (IComponent *componentPtr, const QByteArray &subId="")
	Extract interface from component.
Static Protected Member Functions inherited from istd::CIdManipBase
static bool	SplitId (const QByteArray &complexId, QByteArray &baseId, QByteArray &subId)
	Split component ID into separated ID's.
static QByteArray	JoinId (const QByteArray &baseId, const QByteArray &subId)
	Join base component ID and sub ID into composed component ID.

Detailed Description

template<class Interface>
class icomp::TReferenceMember< Interface >

Pointer to referenced component object.

Don't use direct this class, use macros I_REF and I_ASSIGN instead.

Thread-Safety:

This class uses double-checked locking with std::atomic for thread-safe lazy initialization. The pattern is safe because:

• m_isInitialized is atomic with sequential consistency (default memory order)
• m_interfacePtr is atomic
• Once m_isInitialized is true, no further modifications occur to the cached data
• The mutex protects the initialization phase

Definition at line 34 of file TReferenceMember.h.

Member Typedef Documentation

BaseClass

template<class Interface >

typedef TAttributeMember<CReferenceAttribute> icomp::TReferenceMember< Interface >::BaseClass

Definition at line 39 of file TReferenceMember.h.

BaseClass2

template<class Interface >

typedef CInterfaceManipBase icomp::TReferenceMember< Interface >::BaseClass2

Definition at line 40 of file TReferenceMember.h.

InterfaceType

template<class Interface >

typedef Interface icomp::TReferenceMember< Interface >::InterfaceType

Definition at line 41 of file TReferenceMember.h.

Constructor & Destructor Documentation

TReferenceMember() [1/2]

template<class Interface >

icomp::TReferenceMember< Interface >::TReferenceMember

(

)

Definition at line 86 of file TReferenceMember.h.

TReferenceMember() [2/2]

template<class Interface >

icomp::TReferenceMember< Interface >::TReferenceMember ( const TReferenceMember< Interface > &  ptr )

protected

Definition at line 180 of file TReferenceMember.h.

Member Function Documentation

EnsureInitialized()

template<class Interface >

bool icomp::TReferenceMember< Interface >::EnsureInitialized

(

)

const

Ensure that initlization process is closed.

Do the same as IsValid(), for convinience only (to provide better code clarify).

Definition at line 126 of file TReferenceMember.h.

References icomp::ICompositeComponent::GetSubcomponent(), and NULL.

GetPtr()

template<class Interface >

Interface * icomp::TReferenceMember< Interface >::GetPtr

(

)

const

Direct cccess to internal pointer.

Definition at line 158 of file TReferenceMember.h.

Referenced by iprm::TParamsPtrBase< ParamsSet, ParameterInterace >::Init(), and operator*().

Init()

template<class Interface >

void icomp::TReferenceMember< Interface >::Init	(	const IComponent *	ownerPtr,
		const IRealAttributeStaticInfo &	staticInfo
	)

Definition at line 95 of file TReferenceMember.h.

IsValid()

template<class Interface >

bool icomp::TReferenceMember< Interface >::IsValid

(

)

const

Check if this reference can be resolved.

It calls EnsureInitialized().

Definition at line 119 of file TReferenceMember.h.

Referenced by iprm::TParamsPtrBase< ParamsSet, ParameterInterace >::Init().

operator->()

template<class Interface >

Interface * icomp::TReferenceMember< Interface >::operator->

(

)

const

Access to internal pointer.

Definition at line 167 of file TReferenceMember.h.

References NULL.

---

The documentation for this class was generated from the following file:

• Acf/Include/icomp/TReferenceMember.h
