icomp::TMultiFactoryMember< Interface > Class Template Reference

Factory of components used as component member. More...

#include <TMultiFactoryMember.h>

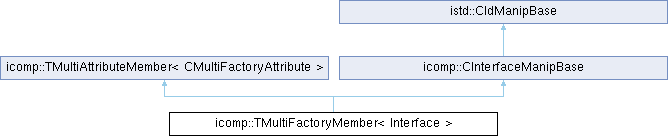

Inheritance diagram for icomp::TMultiFactoryMember< Interface >:

Public Types
typedef TMultiAttributeMember< CMultiFactoryAttribute >	BaseClass
typedef CInterfaceManipBase	BaseClass2
typedef Interface	InterfaceType
Public Types inherited from icomp::TMultiAttributeMember< CMultiFactoryAttribute >
typedef CMultiFactoryAttribute	AttributeType
typedef Attribute::ValueType	AttributeValueType
typedef void	InterfaceType

Public Member Functions
	TMultiFactoryMember ()
void	Init (const IComponent *ownerPtr, const IRealAttributeStaticInfo &staticInfo)
bool	IsValid () const
	Check if this factory can be resolved.
icomp::IComponentUniquePtr	CreateComponent (int index) const
	Create component for specified index without extracting any interface.
istd::TUniqueInterfacePtr< Interface >	CreateInstance (int index) const
	Create instance of interface for specified index.
Public Member Functions inherited from icomp::TMultiAttributeMember< CMultiFactoryAttribute >
	TMultiAttributeMember ()
void	Init (const IComponent *ownerPtr, const IRealAttributeStaticInfo &staticInfo)
	Internal initialize of attribute.
bool	IsValid () const
	Check if this attribute is valid.
int	GetCount () const
	Get number of attributes.
const AttributeValueType &	operator[] (int index) const
	Access to object pointed by internal pointer.
int	FindValue (const AttributeValueType &value) const
	Find attribute value.

Static Public Member Functions
static Interface *	ExtractInterface (IComponent *componentPtr, const QByteArray &subId="")
	Extract interface from some component.
Static Public Member Functions inherited from istd::CIdManipBase
static bool	SplitId (const QByteArray &complexId, QByteArray &baseId, QByteArray &subId)
	Split component ID into separated ID's.
static QByteArray	JoinId (const QByteArray &baseId, const QByteArray &subId)
	Join base component ID and sub ID into composed component ID.

Protected Member Functions
	TMultiFactoryMember (const TMultiFactoryMember &ptr)
Protected Member Functions inherited from icomp::TMultiAttributeMember< CMultiFactoryAttribute >
bool	InitInternal (const IComponent *ownerPtr, const IRealAttributeStaticInfo &staticInfo, const IComponent **definitionComponentPtr)

Additional Inherited Members
Static Protected Member Functions inherited from icomp::CInterfaceManipBase
template<class Interface >
static Interface *	ExtractInterface (IComponent *componentPtr, const QByteArray &subId="")
	Extract interface from component.

Detailed Description

template<class Interface>
class icomp::TMultiFactoryMember< Interface >

Factory of components used as component member.

Don't use direct this class, use macros I_FACT and I_ASSIGN instead.

Definition at line 22 of file TMultiFactoryMember.h.

Member Typedef Documentation

BaseClass

template<class Interface >

typedef TMultiAttributeMember<CMultiFactoryAttribute> icomp::TMultiFactoryMember< Interface >::BaseClass

Definition at line 25 of file TMultiFactoryMember.h.

BaseClass2

template<class Interface >

typedef CInterfaceManipBase icomp::TMultiFactoryMember< Interface >::BaseClass2

Definition at line 26 of file TMultiFactoryMember.h.

InterfaceType

template<class Interface >

typedef Interface icomp::TMultiFactoryMember< Interface >::InterfaceType

Definition at line 27 of file TMultiFactoryMember.h.

Constructor & Destructor Documentation

TMultiFactoryMember() [1/2]

template<class Interface >

icomp::TMultiFactoryMember< Interface >::TMultiFactoryMember

(

)

Definition at line 74 of file TMultiFactoryMember.h.

TMultiFactoryMember() [2/2]

template<class Interface >

icomp::TMultiFactoryMember< Interface >::TMultiFactoryMember ( const TMultiFactoryMember< Interface > &  ptr )

protected

Definition at line 146 of file TMultiFactoryMember.h.

Member Function Documentation

CreateComponent()

template<class Interface >

icomp::IComponentUniquePtr icomp::TMultiFactoryMember< Interface >::CreateComponent

(

int

index

)

const

Create component for specified index without extracting any interface.

Definition at line 96 of file TMultiFactoryMember.h.

References icomp::ICompositeComponent::CreateSubcomponent(), and NULL.

CreateInstance()

template<class Interface >

istd::TUniqueInterfacePtr< Interface > icomp::TMultiFactoryMember< Interface >::CreateInstance

(

int

index

)

const

Create instance of interface for specified index.

This is combination of the methods CreateComponent and ExtractInterface provided for convinience, if only one interface is asked in factorisied objects.

Definition at line 120 of file TMultiFactoryMember.h.

References NULL.

ExtractInterface()

template<class Interface >

Interface * icomp::TMultiFactoryMember< Interface >::ExtractInterface ( IComponent *  componentPtr, const QByteArray &  subId = ""  )

static

Extract interface from some component.

Type of extracted interface is specified by template parameter of this class. If you want to force some factory to support more interfaces, you should simply define multiply I_FACT members with the same ID, factorise instances with any of them and extract specified interfaces using this method.

Parameters

componentPtr	pointer to component object, typically returned by method CreateComponent().
subId	optionally ID parameter identifing subcomponent.

Returns

pointer to interface or NULL, if such interface could not be extracted.

Definition at line 137 of file TMultiFactoryMember.h.

Init()

template<class Interface >

void icomp::TMultiFactoryMember< Interface >::Init	(	const IComponent *	ownerPtr,
		const IRealAttributeStaticInfo &	staticInfo
	)

Definition at line 81 of file TMultiFactoryMember.h.

IsValid()

template<class Interface >

bool icomp::TMultiFactoryMember< Interface >::IsValid

(

)

const

Check if this factory can be resolved.

Please note, that it gives no guarantee, that objects can be factorised.

Definition at line 88 of file TMultiFactoryMember.h.

References NULL.

---

The documentation for this class was generated from the following file:

• Acf/Include/icomp/TMultiFactoryMember.h
