iattr::CAttributeMetaInfo Class Reference

Represents constraints of properties allowing values from enumerated set. More...

#include <CAttributeMetaInfo.h>

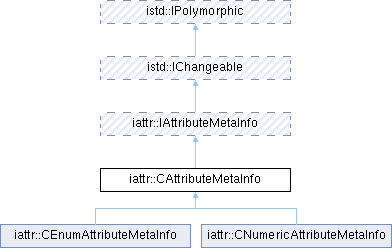

Inheritance diagram for iattr::CAttributeMetaInfo:

Public Member Functions
	CAttributeMetaInfo (const QByteArray &typeId="")
void	SetAttributeTypeId (const QByteArray &typeId)
void	SetAttributeDescription (const QString &description)
void	SetAttributeFlags (int attributeFlags)
void	SetAttributeDefaultValue (const iser::IObject *defaultValuePtr, bool releaseFlag)
virtual QString	GetAttributeDescription () const override
	Get description of this attribute.
virtual const iser::IObject *	GetAttributeDefaultValue () const override
	Get default attribute value.
virtual QByteArray	GetAttributeTypeId () const override
	Return attribute type ID.
virtual int	GetAttributeFlags () const override
	Get flags of this attribute.
Public Member Functions inherited from istd::IChangeable
virtual int	GetSupportedOperations () const
	Get set of flags for supported operations.
virtual bool	CopyFrom (const IChangeable &object, CompatibilityMode mode=CM_WITHOUT_REFS)
	Copy this object from another one.
virtual bool	IsEqual (const IChangeable &object) const
	Compare this object with another object.
virtual istd::TUniqueInterfacePtr< istd::IChangeable >	CloneMe (CompatibilityMode mode=CM_WITHOUT_REFS) const
	Make a copy of this object.
virtual bool	ResetData (CompatibilityMode mode=CM_WITHOUT_REFS)
	Reset data to its default state.
virtual void	BeginChanges (const ChangeSet &changeSet)
	Starts the change transaction.
virtual void	EndChanges (const ChangeSet &changeSet)
	Ends the change transaction.
virtual void	BeginChangeGroup (const ChangeSet &changeSet)
	Starts group of changes.
virtual void	EndChangeGroup (const ChangeSet &changeSet)
	Ends group of changes.
Public Member Functions inherited from istd::IPolymorphic
virtual	~IPolymorphic ()

Additional Inherited Members
Public Types inherited from iattr::IAttributeMetaInfo
enum	AttributeFlags {   AF_OBLIGATORY = 1 << 0 , AF_NULLABLE = 1 << 1 , AF_SINGLE = 1 << 2 , AF_MULTIPLE = 1 << 3 ,   AF_VALUE = 1 << 4 , AF_READ_ONLY = 1 << 31 }
	Flags signalizing set of attribute properties. More...
Public Types inherited from istd::IChangeable
enum	ChangeFlags {   CF_ACF_INTERNAL = 0 , CF_ALL_DATA , CF_ANY , CF_DESTROYING ,   CF_DELEGATED , CF_NO_UNDO }
	Data model change notification flags. More...
enum	SupportedOperations {   SO_NONE = 0 , SO_OBSERVE = 1 << 0 , SO_COPY = 1 << 1 , SO_CLONE = 1 << 2 ,   SO_COMPARE = 1 << 3 , SO_RESET = 1 << 4 }
	Flags for supported operations. More...
enum	CompatibilityMode { CM_STRICT , CM_WITHOUT_REFS , CM_WITH_REFS , CM_CONVERT }
	Control how relationship betweeen objects are interpreted. More...
typedef QMultiMap< QByteArray, QVariant >	ChangeInfoMap
Static Public Member Functions inherited from istd::IChangeable
static const ChangeSet &	GetNoChanges ()
	Get empty set of changes.
static const ChangeSet &	GetAnyChange ()
	Get anonymous change set.
static const ChangeSet &	GetAllChanges ()
	Get anonymous change set.
static const ChangeSet &	GetDelegatedChanges ()
	Get delegated change set.
Protected Member Functions inherited from istd::IChangeable
virtual void	OnBeginChanges ()
	Callback function for begin change event.
virtual void	OnEndChanges (const ChangeSet &changeSet)
	Callback function for end change event.

Detailed Description

Represents constraints of properties allowing values from enumerated set.

Definition at line 19 of file CAttributeMetaInfo.h.

Constructor & Destructor Documentation

CAttributeMetaInfo()

iattr::CAttributeMetaInfo::CAttributeMetaInfo ( const QByteArray &  typeId = "" )

explicit

Member Function Documentation

GetAttributeDefaultValue()

virtual const iser::IObject * iattr::CAttributeMetaInfo::GetAttributeDefaultValue ( ) const

overridevirtual

Get default attribute value.

Returns

pointer to default attribute value, if set. Elsewhere it returns NULL.

Implements iattr::IAttributeMetaInfo.

GetAttributeDescription()

virtual QString iattr::CAttributeMetaInfo::GetAttributeDescription ( ) const

overridevirtual

Get description of this attribute.

Implements iattr::IAttributeMetaInfo.

GetAttributeFlags()

virtual int iattr::CAttributeMetaInfo::GetAttributeFlags ( ) const

overridevirtual

Get flags of this attribute.

Implements iattr::IAttributeMetaInfo.

GetAttributeTypeId()

virtual QByteArray iattr::CAttributeMetaInfo::GetAttributeTypeId ( ) const

overridevirtual

Return attribute type ID.

The attribute type ID identifies unique this attribute in factory.

See also

istd::TIFactory::CreateInstance.

Implements iattr::IAttributeMetaInfo.

SetAttributeDefaultValue()

void iattr::CAttributeMetaInfo::SetAttributeDefaultValue	(	const iser::IObject *	defaultValuePtr,
		bool	releaseFlag
	)

SetAttributeDescription()

void iattr::CAttributeMetaInfo::SetAttributeDescription

(

const QString &

description

)

SetAttributeFlags()

void iattr::CAttributeMetaInfo::SetAttributeFlags

(

int

attributeFlags

)

SetAttributeTypeId()

void iattr::CAttributeMetaInfo::SetAttributeTypeId

(

const QByteArray &

typeId

)

---

The documentation for this class was generated from the following file:

• Acf/Include/iattr/CAttributeMetaInfo.h
